Seismic workboats

Specially designed multi-purpose workboats for seismic operations

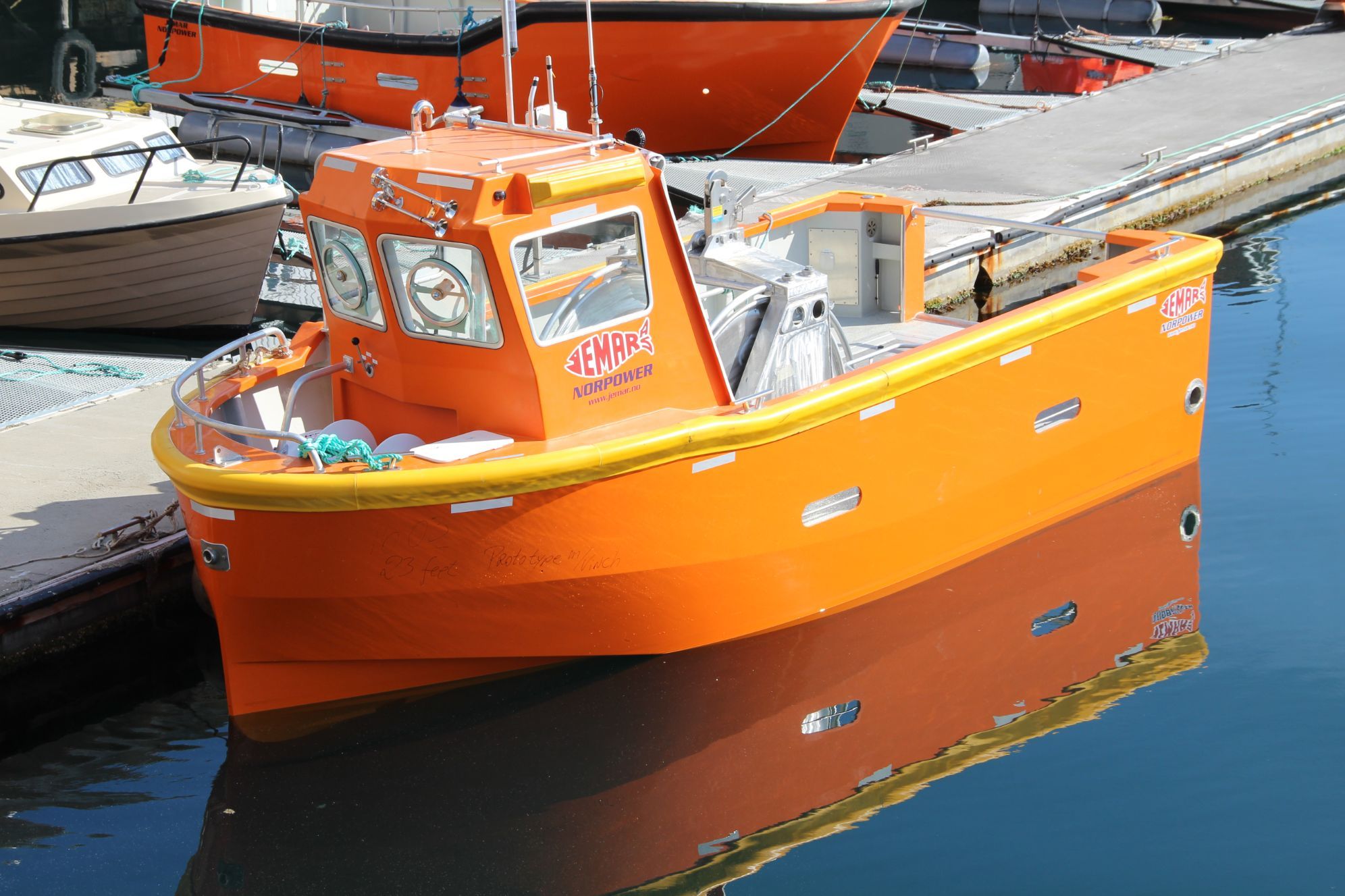

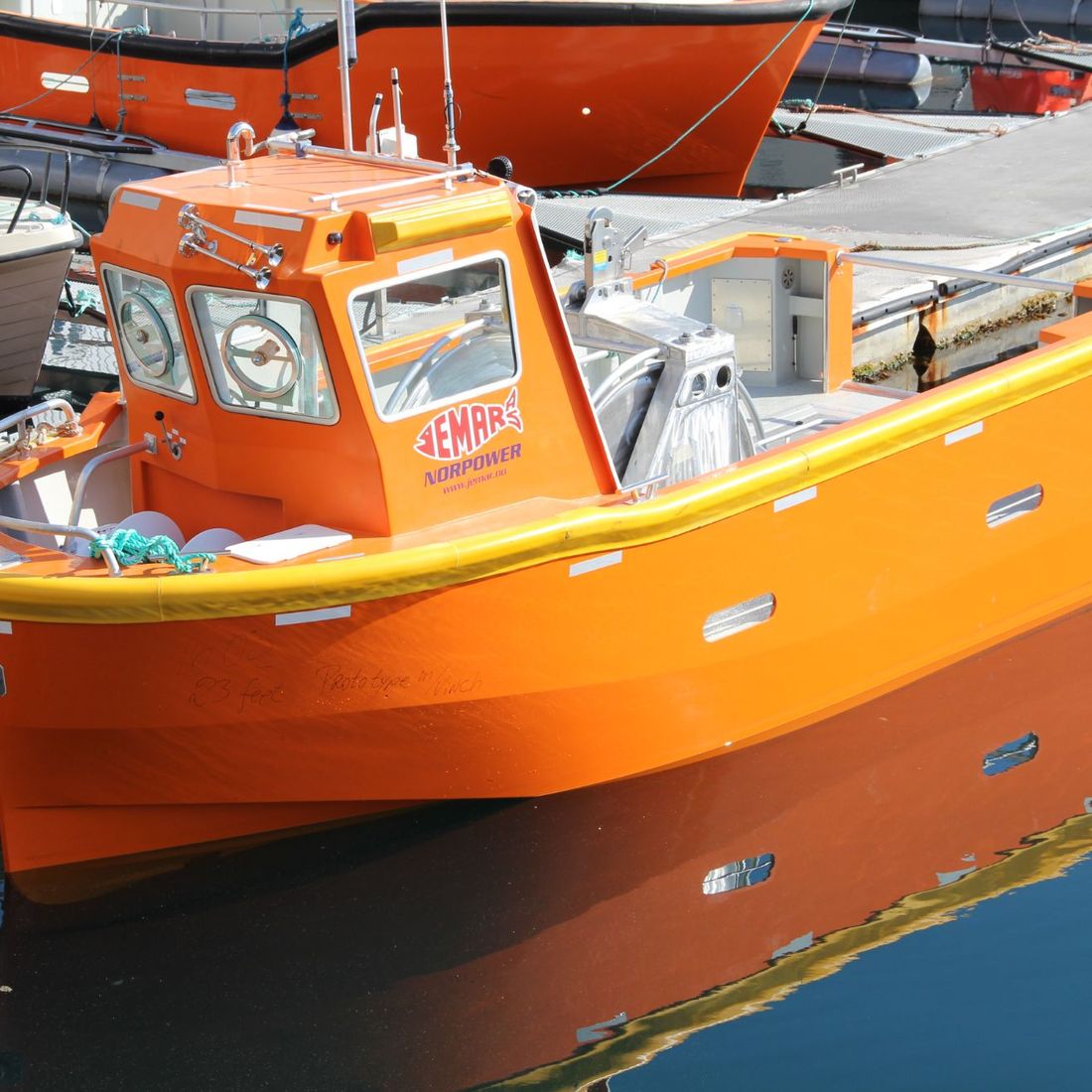

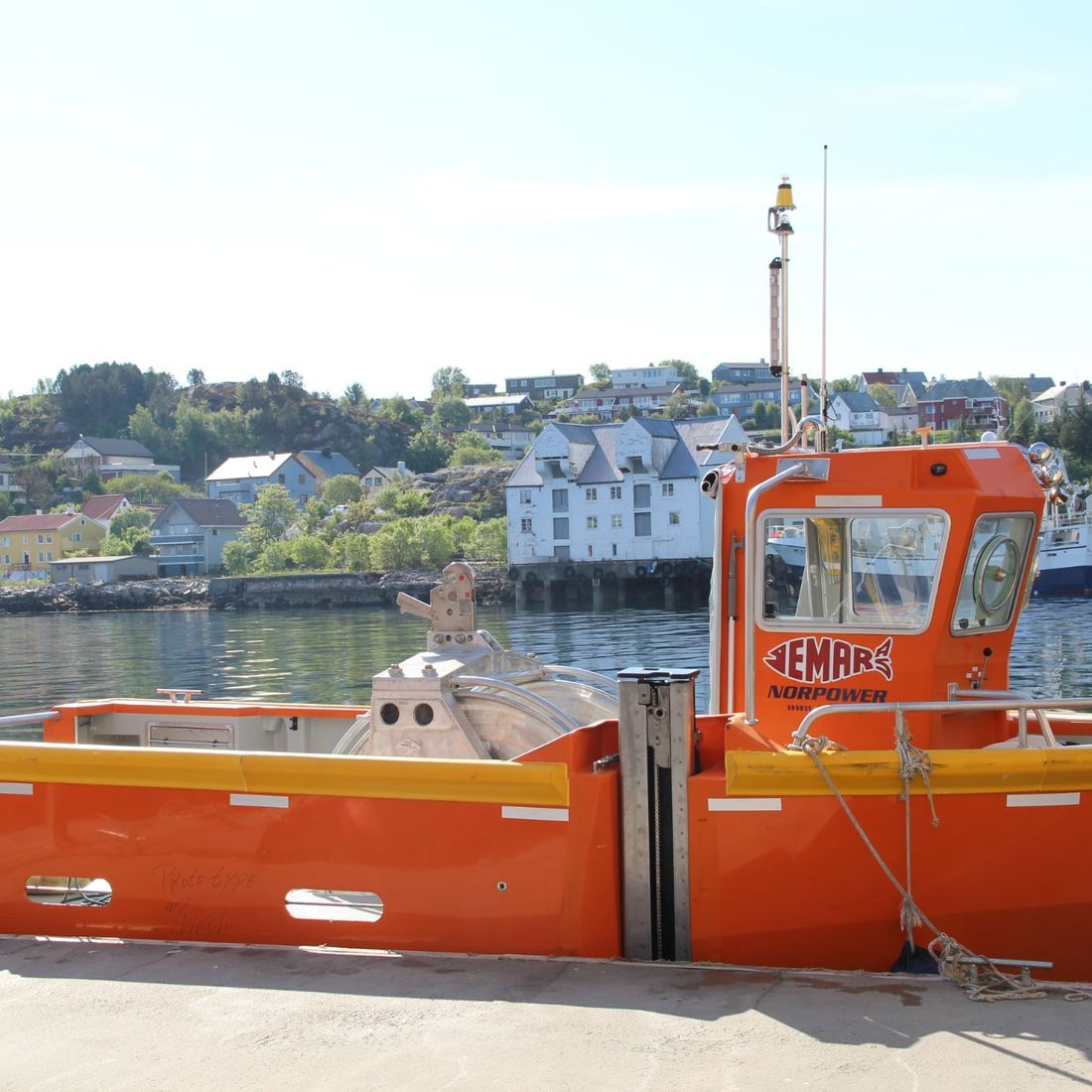

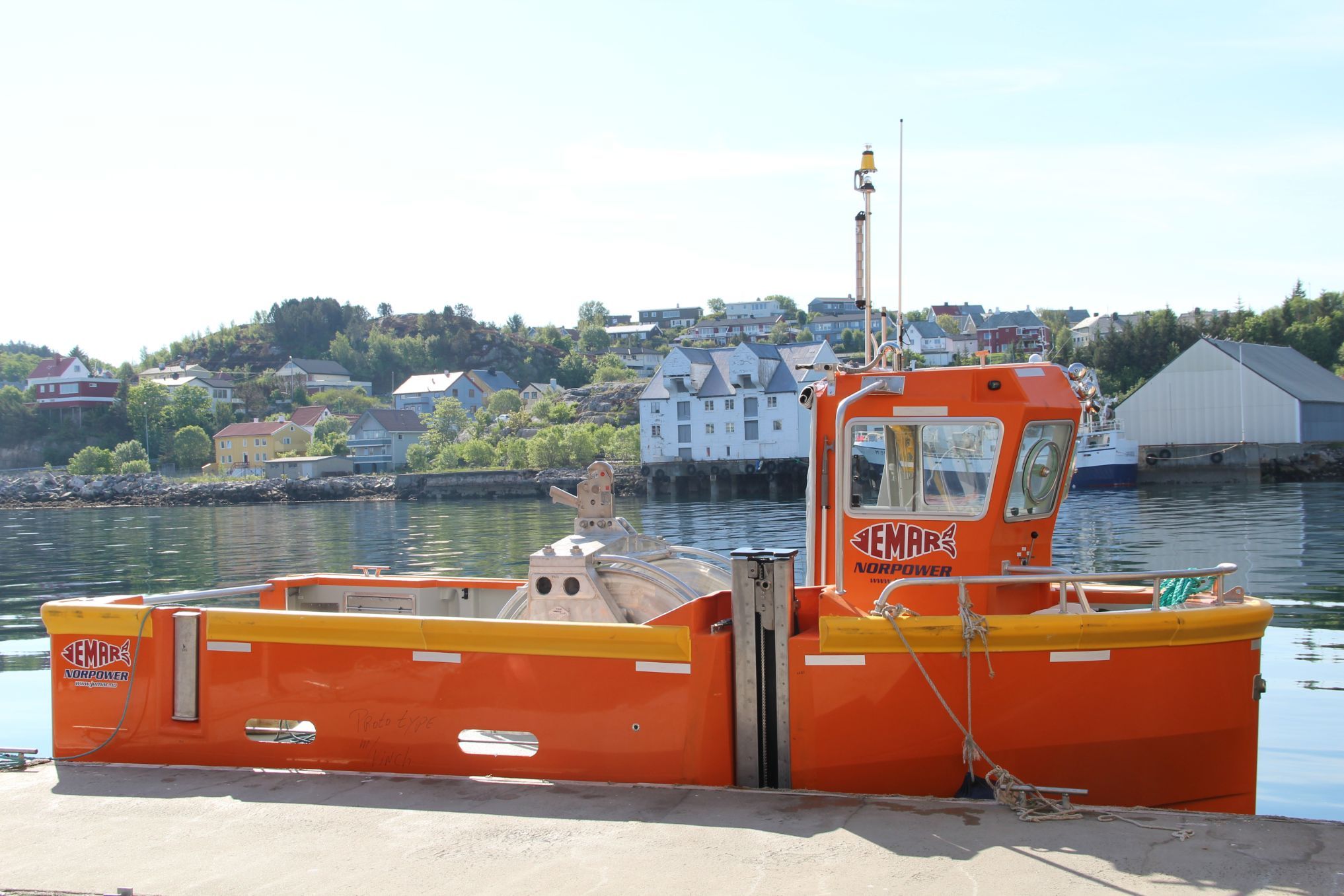

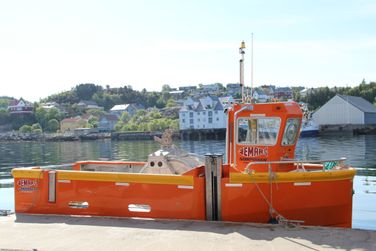

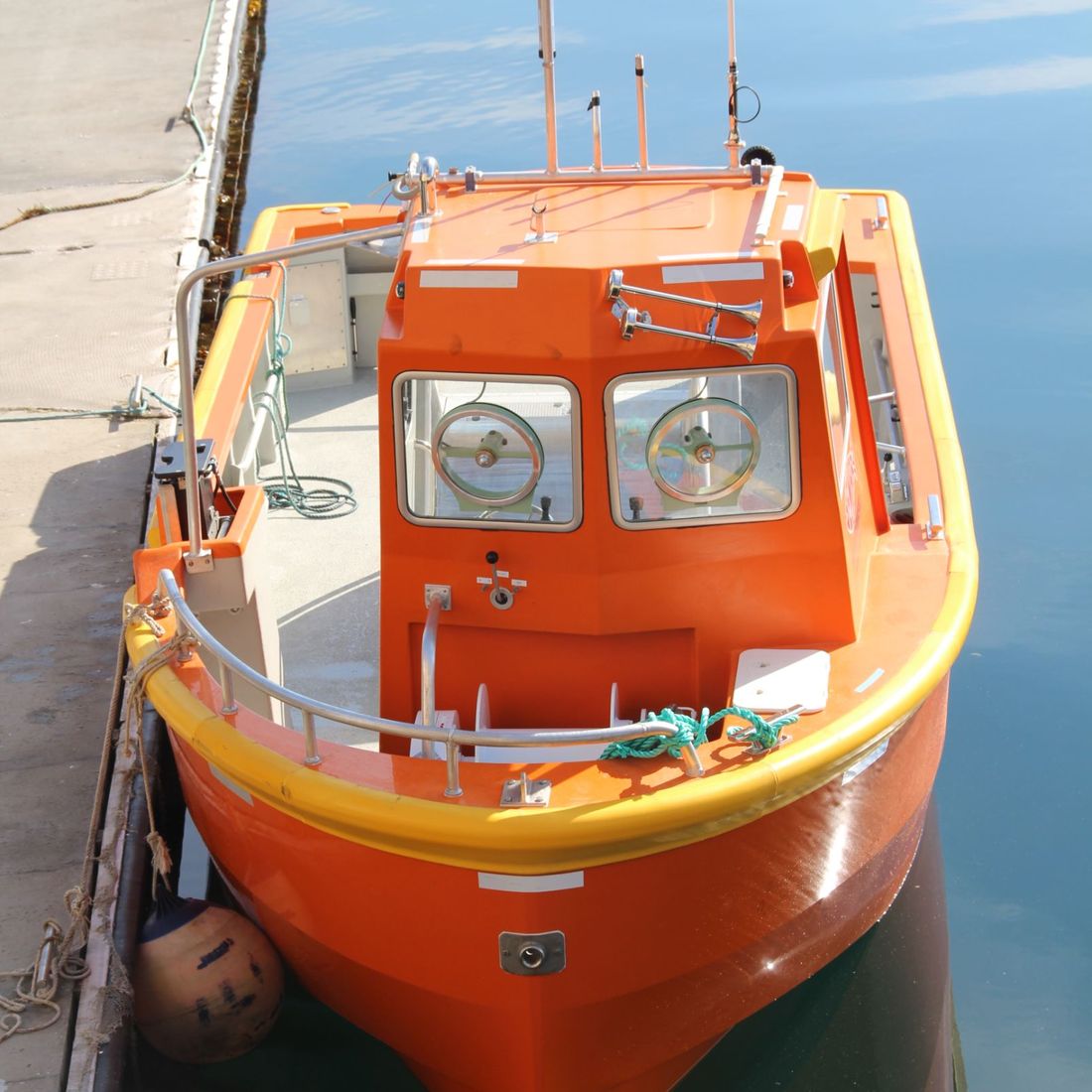

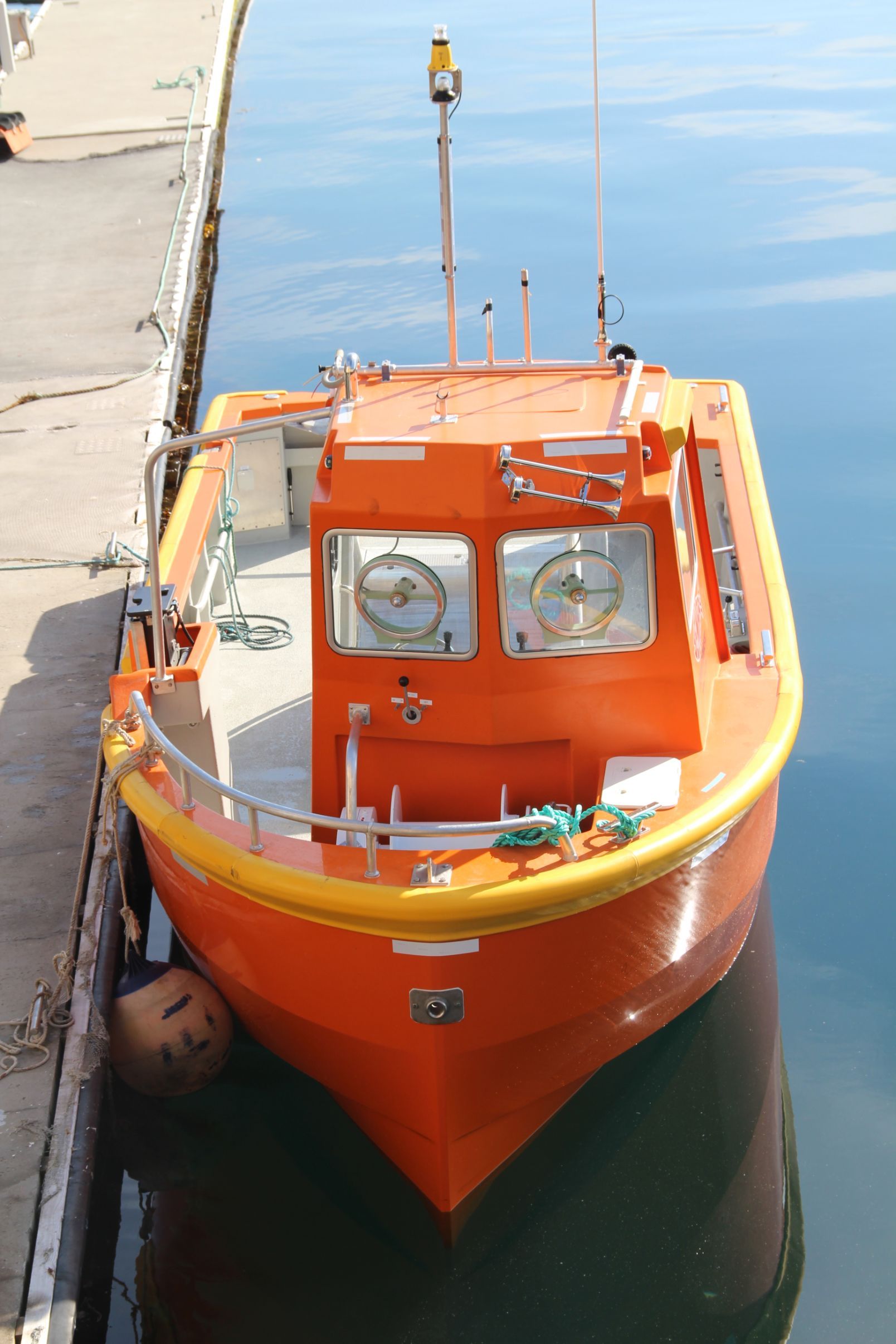

Jemar Norpower 23ft Seismic Workboat

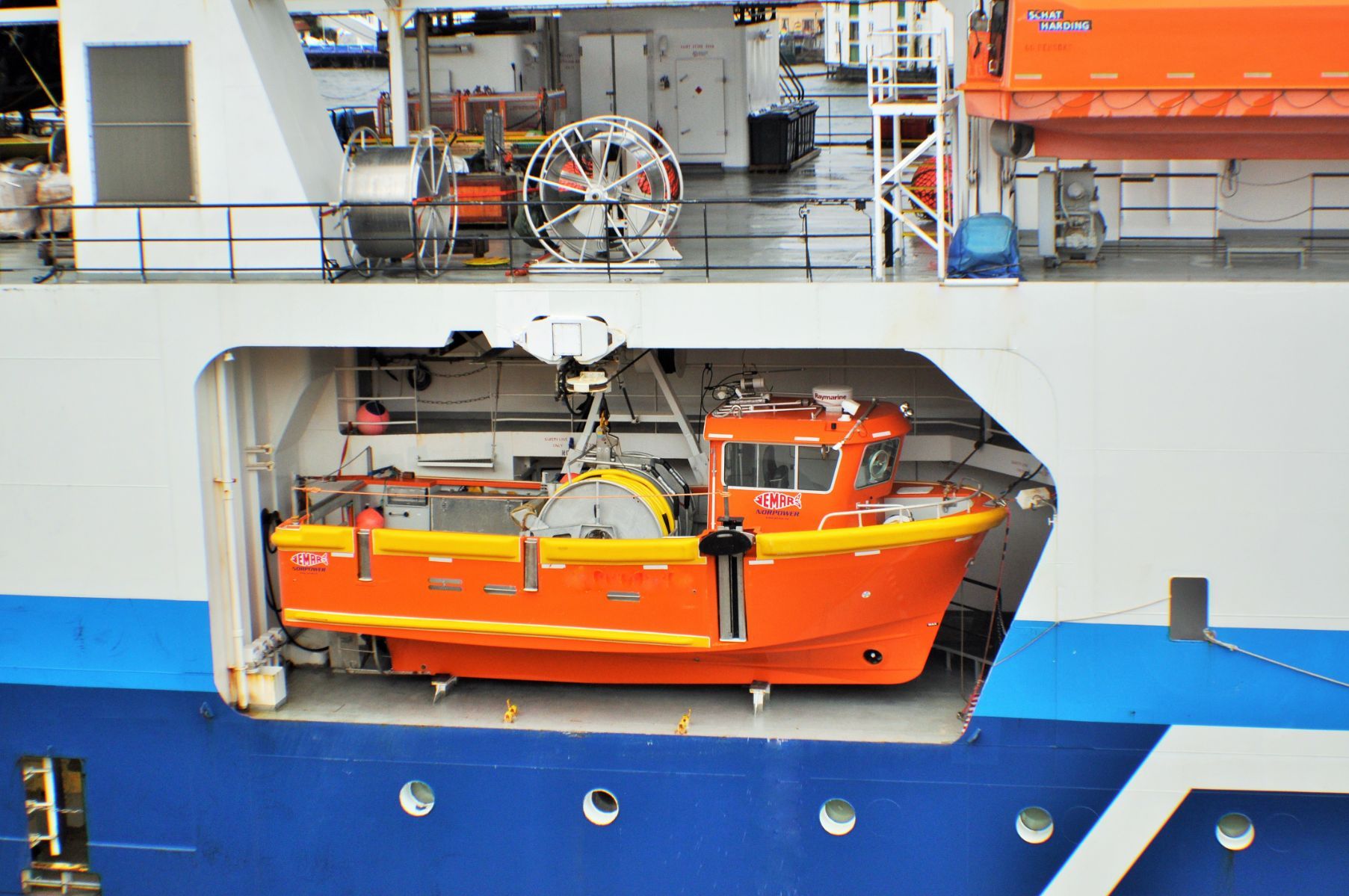

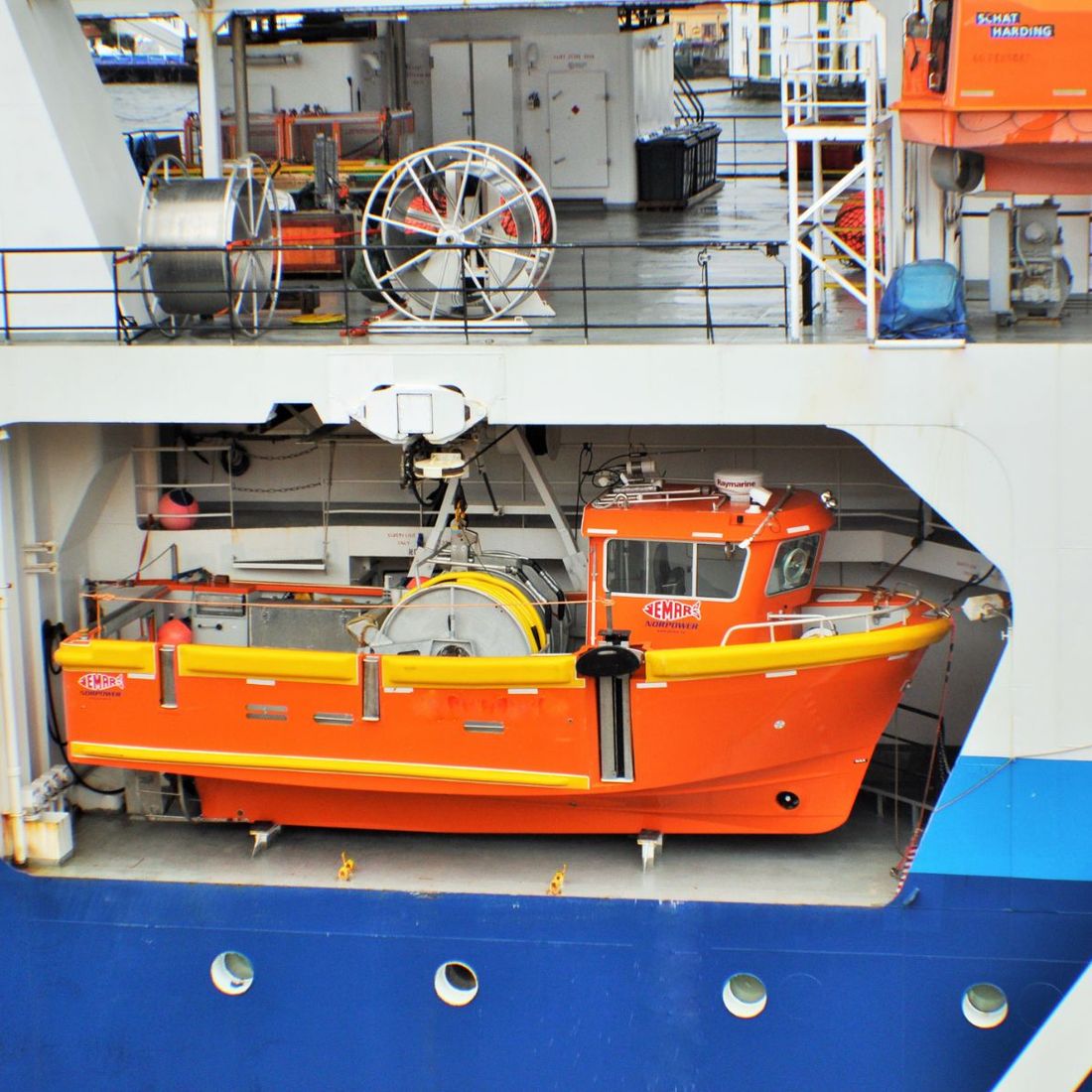

The Jemar Norpower 23ft Seismic Workboat is a special designed workboat for cable handling operations at sea. It can operate as a “stand alone” workboat on survey vessels with weight or space limitations or 2nd Workboat onboard “full size” survey vessels or placed on a chase boat. This spare workboat will fit onboard all types of mother vessels. This is the smallest and lightest of our seismic workboats. 
Vital parts of the boat-construction are strengthened based on experience from rough handling of workboats on purse net seiners, Supply vessels in the North Sea, and supply of more than 100 workboats for seismic operations over the last 15-20 years.

The workboat is certified as a decked boat, and the shape of the hull forms a boat with square stern and deep keel, trim and bowline inclining forward. The deck is self-drained and large flush work deck behind the winch, for working or passengers (Crew transfer). It is fully equipped for all kinds of cable work like cleaning cables, changing streamer sections, repairing birds, and towing tail buoys. Thanks to the variable pitch propeller and the hull design the boat can tow 2,5 tonnes and obtain a speed of 20 knots. The strong construction and solid fender make the workboat endure rough treatment. Jemar Norpower Seismic Workboat has excellent towing characteristics and high stability and considerable surplus buoyancy make the boat practically unsinkable.

The boats are certified by "Bureau Veritas" as Workboat complying with the rules for “Nordic Boat Standard”.

Features of the boat today are:

  • 8T «Off-load-release» one-point lifting hook.
  • Solid fender on the railing
  • Precise steering due to the shape of the keel and an enlarged rudder blade.
  • Easy to manoeuvre at working speed (4-5 knots).
  • Reliable propulsion system that is easy to maintain.
  • A comfortable and quite soft pitch of the boat even when run at high speed against the sea.
  • Excellent seaworthiness and solid hull construction ensure the safety of the crew.
  • Shelter for the crew in “open back wheelhouse”.
  • Custom made cable handling equipment for safe and effective cable operations.

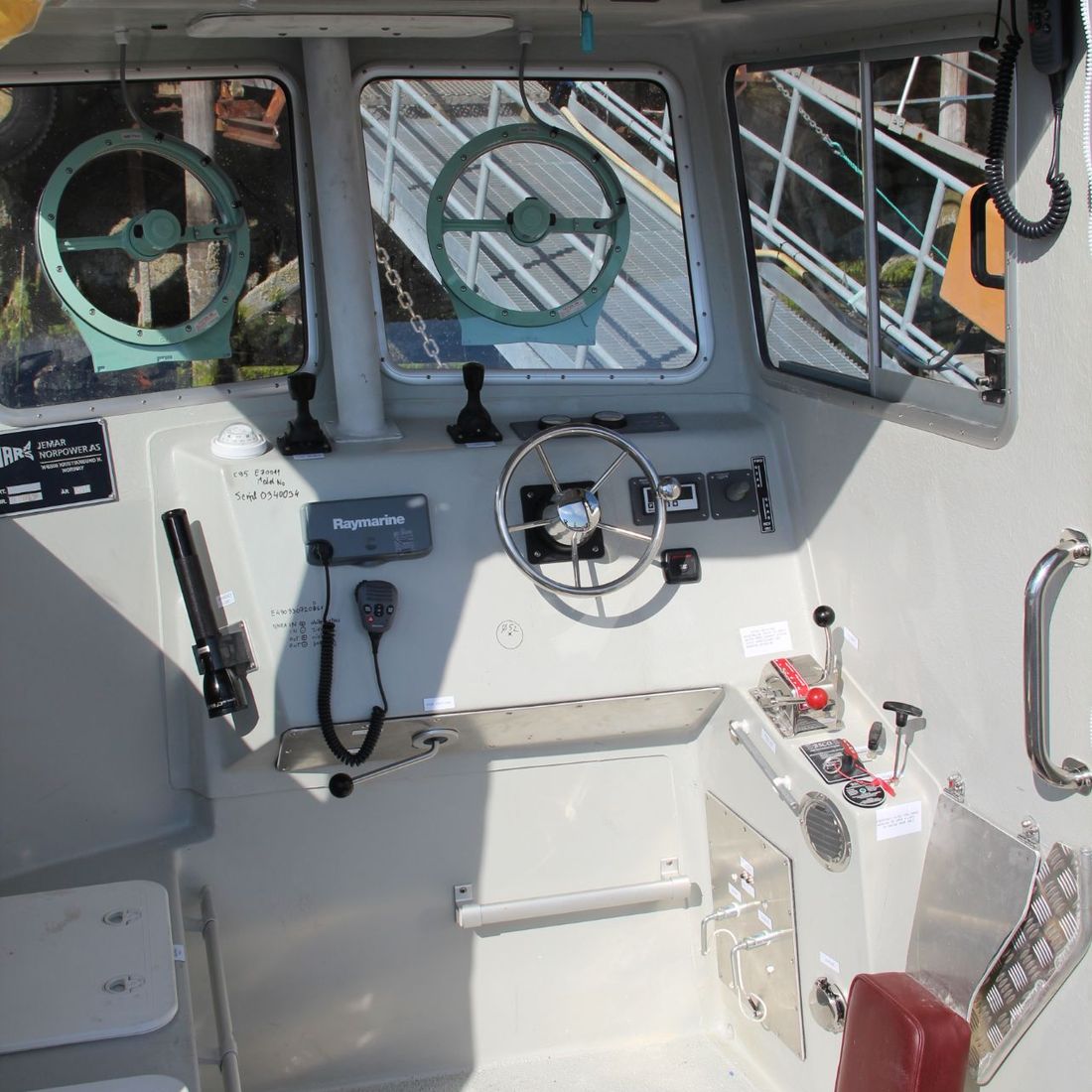

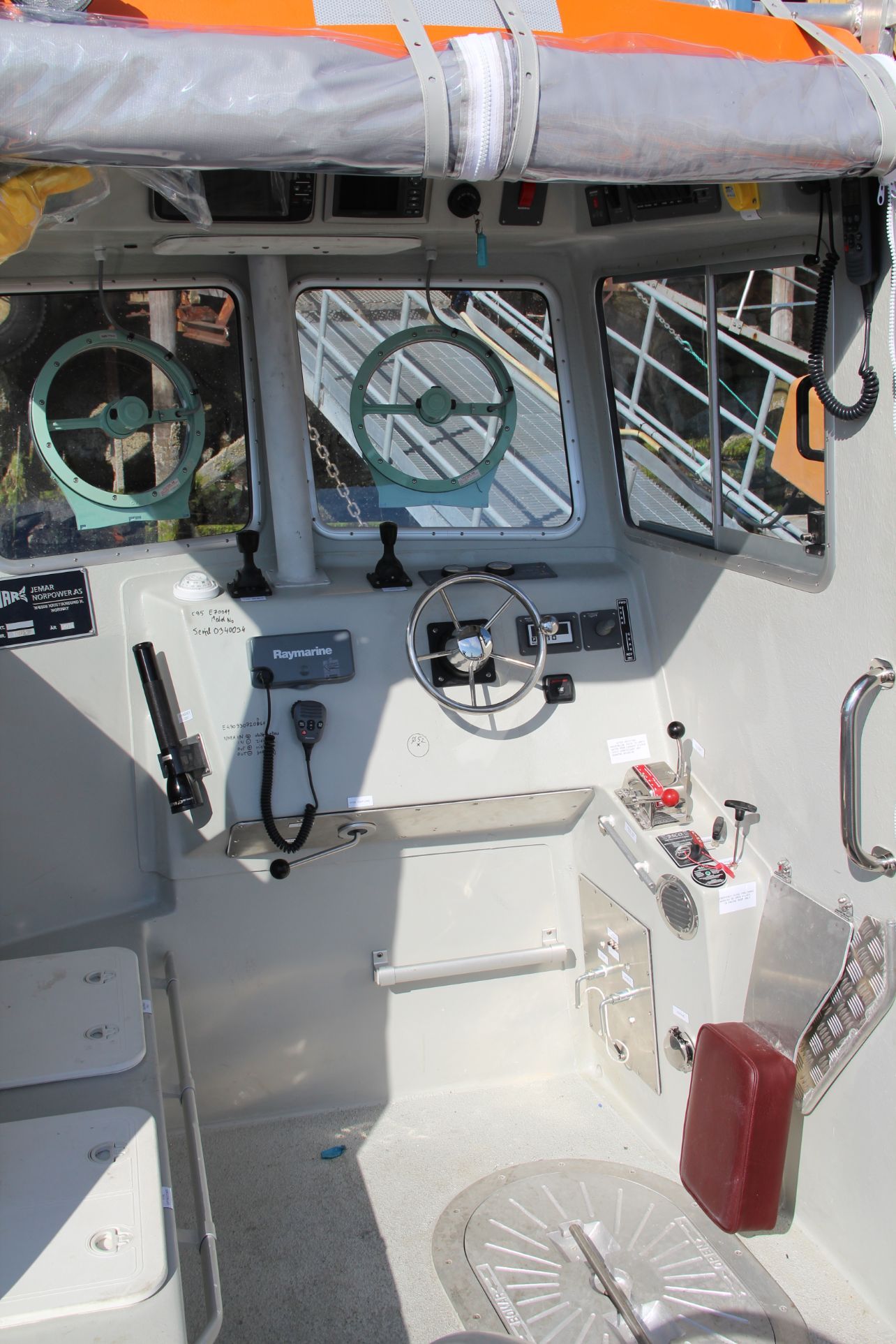

    Wheelhouse with maneuver console in front.
  • Coxswain-seat for the pilot and seating for four crew members.
  • Approved bilge and fire extinguishing systems.
  • Navigation and communication.

Fundamentals

   Length over all   7,015m
   Beam Incl. Fender   2,99
   Lightship weight   4,2 tonnes
   Engine range   175 to 355 Bhp
   Propulsion   Single Pitch Propeller
   Gear   Nogva or V-gear ZF
   Speed range   16 to 25 knots
   Bollard pull   1850 to 2800 kg+
   Pax. Capacity   6-8 persons
   Fuel capacity   2 x 150 Liter
   Class   Craft 2010
   Cable Handling Equitment(Hydraulic)  

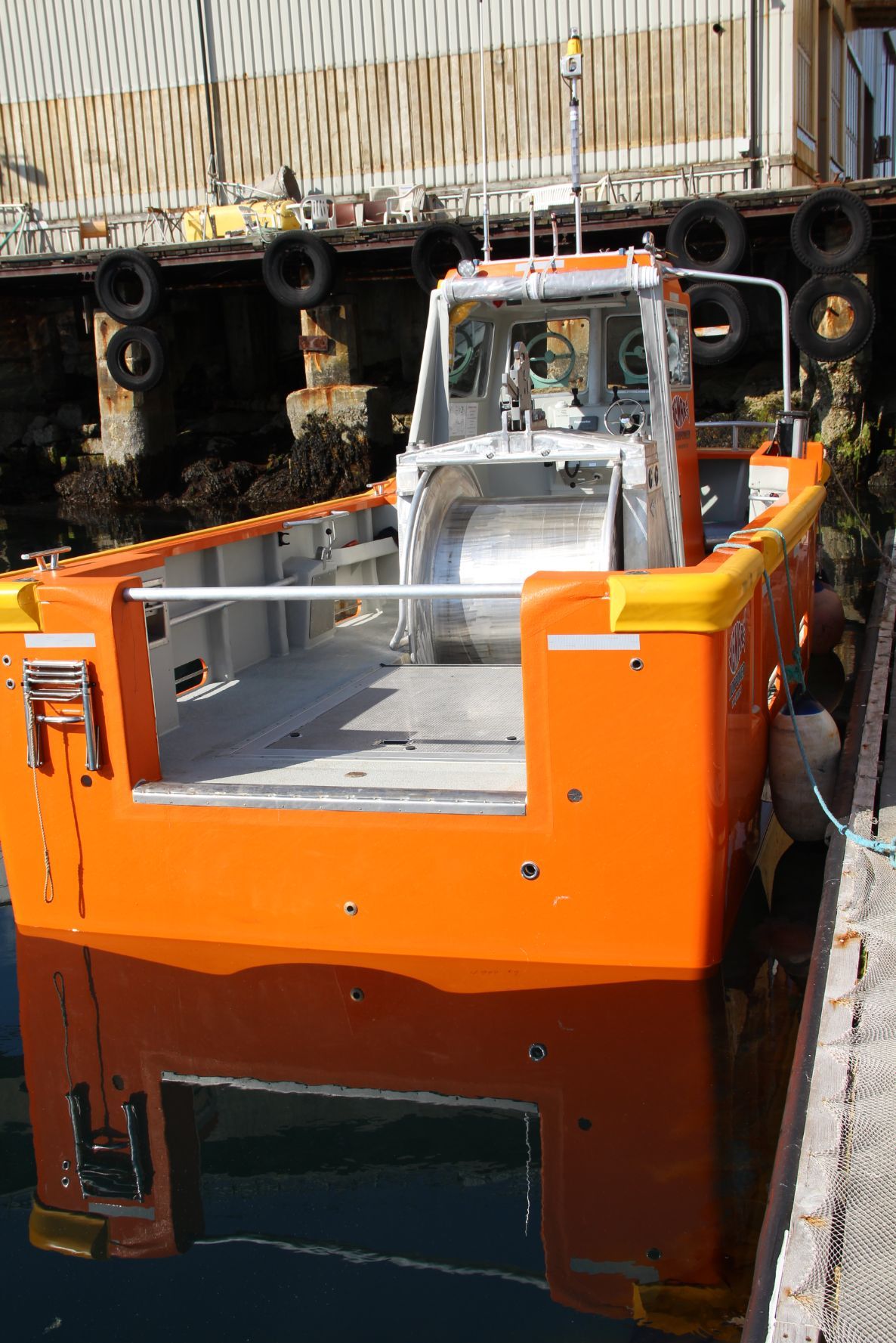

  • Single Drum Cable Winch, Capacity 150 m 60mm solid streamer
  • Bow winch of forecastle, Capacity 210m 14 mm rope
  • Cable Retrieval Rig at forward, one flipper at SB side
   Class society   Bureau Veritas
     Description
  • SOLAS-rated lifting arrangement.
  • Possible to install streamer winch 
  • New streamer protection system under development
  • Boat can be delivered with “Arctic package” (heating, anti-icing and ice protection”)
  • Davit designed for the boat available.

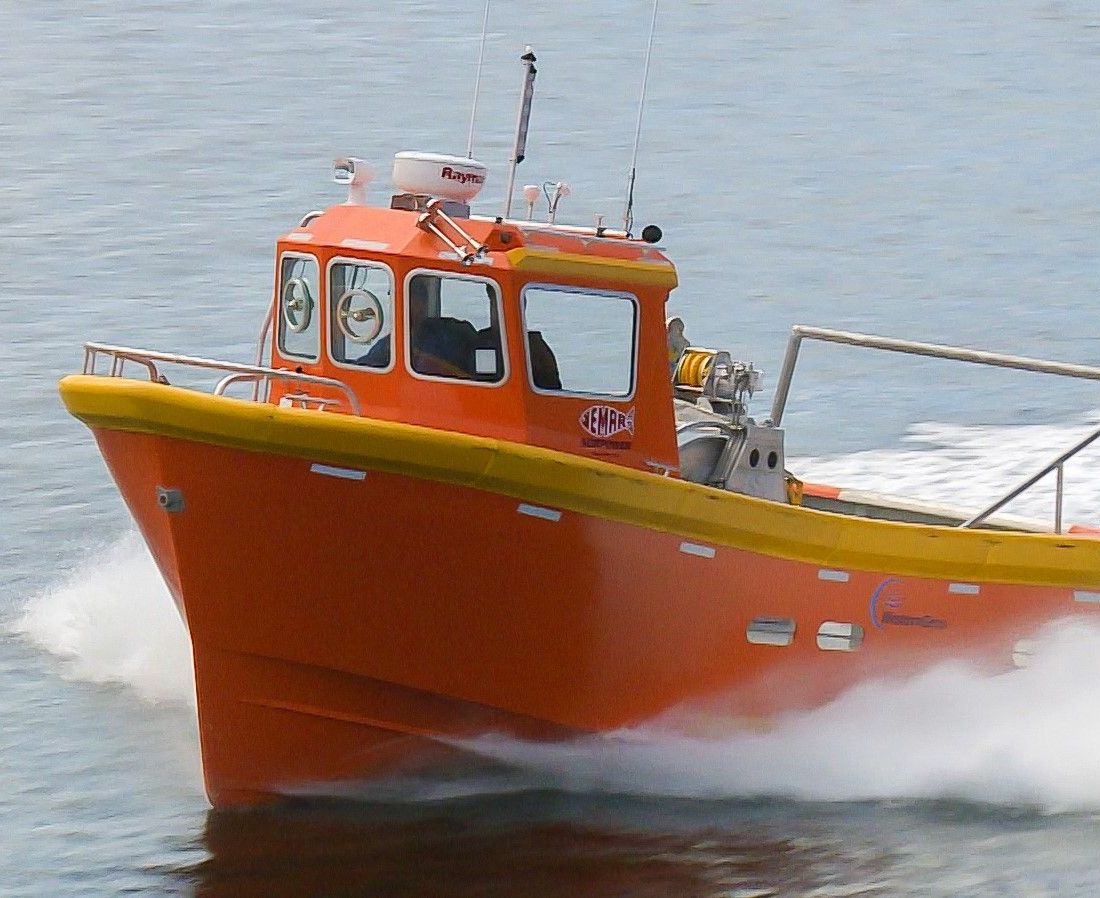

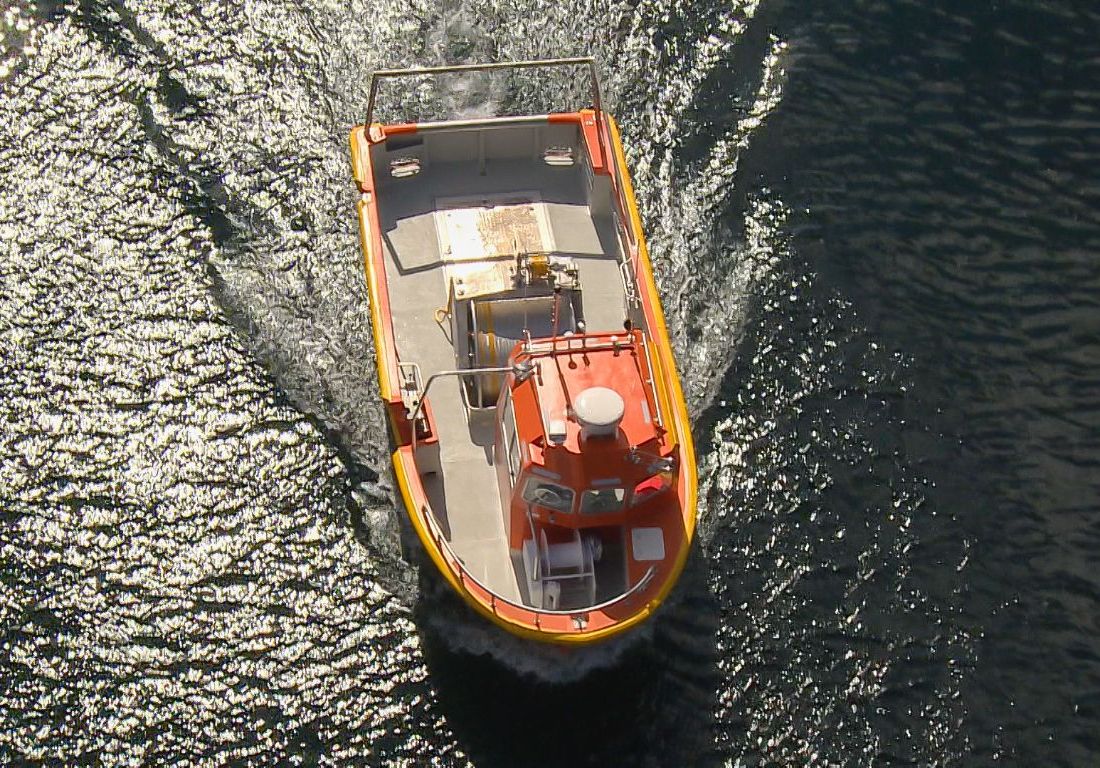

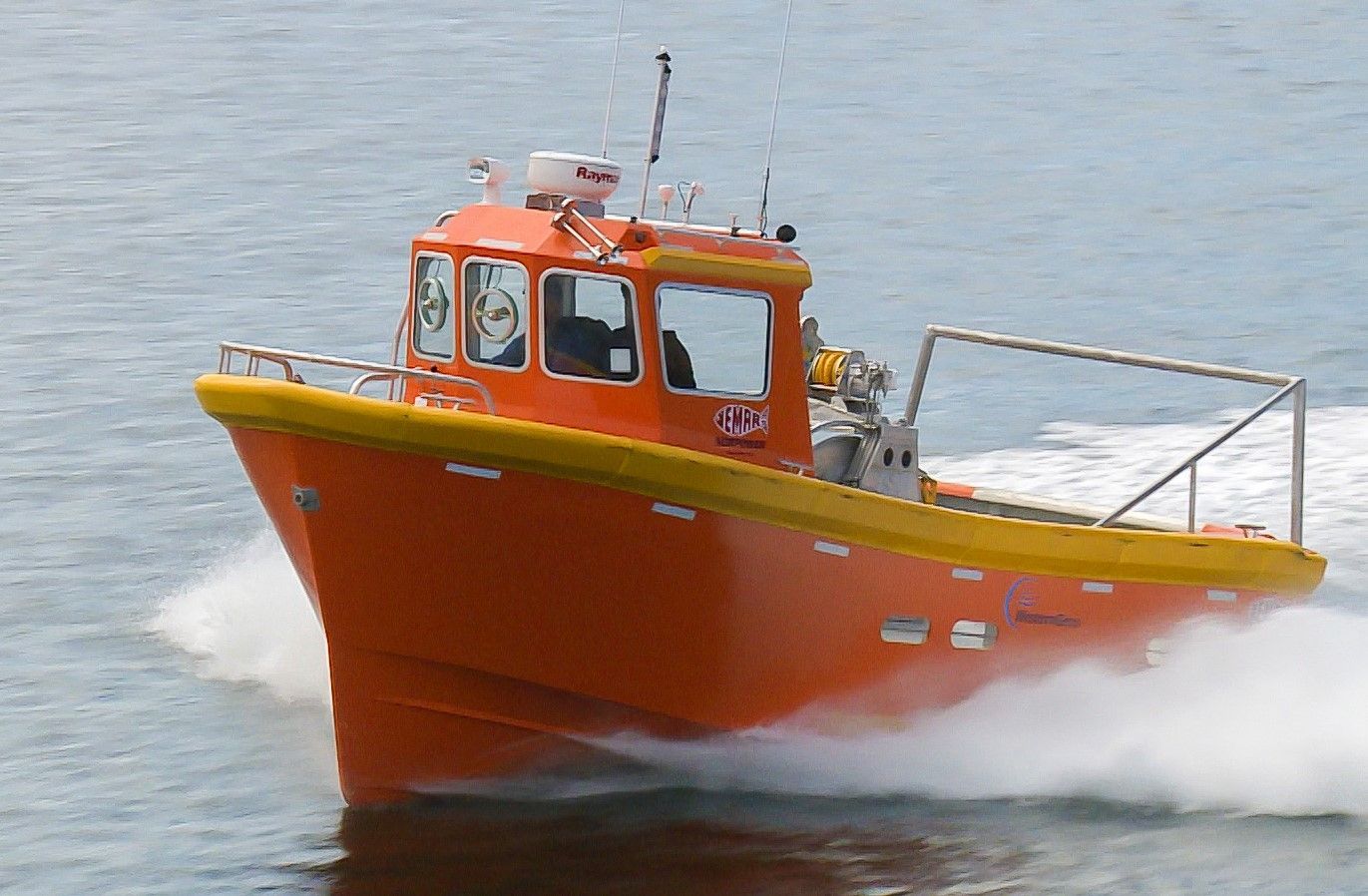

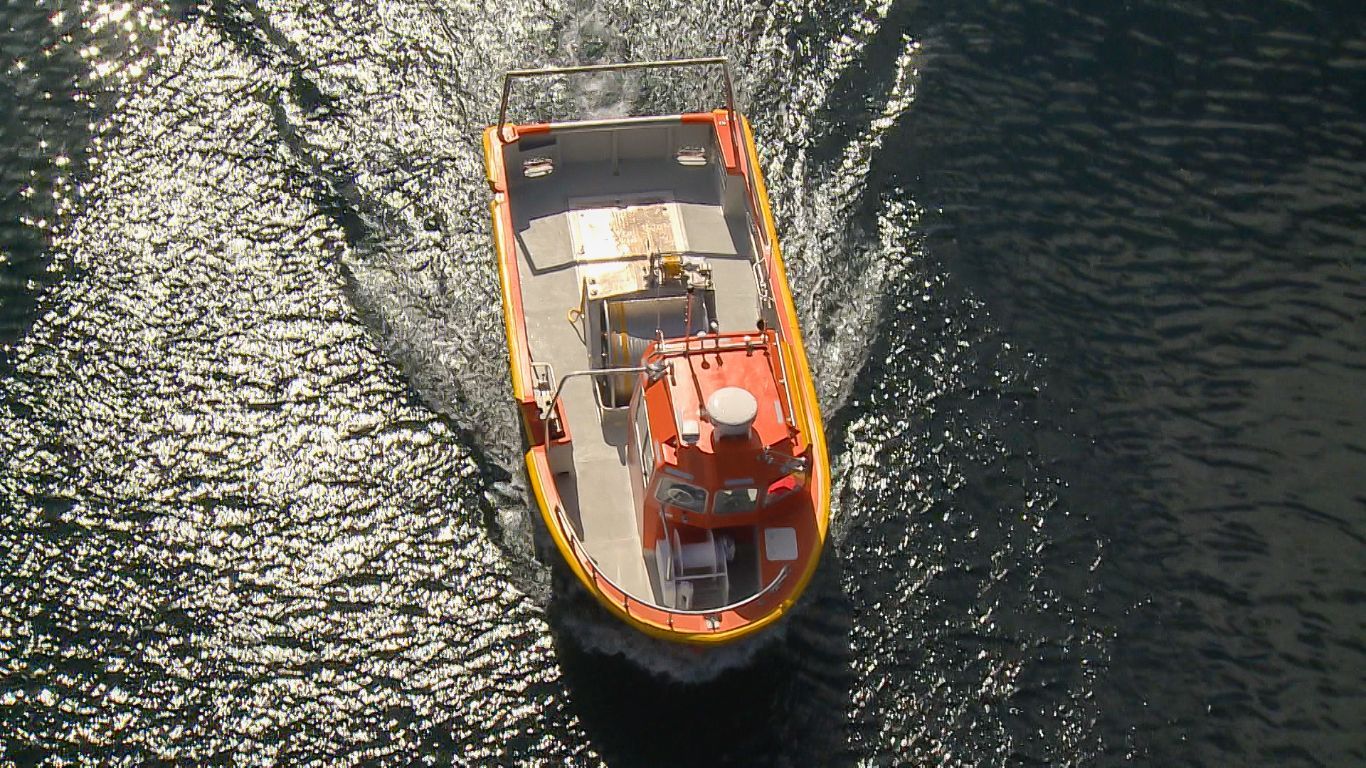

Jemar Norpower 26ft Seismic Workboat

The Jemar Norpower 26ft Seismic Workboat is a special designed workboat for cable handling operations at sea. It can operate as a “stand alone” workboat on survey vessels with weight or space limitations or 2nd Workboat onboard “full size” survey vessels. This spare workboat will fit onboard all types of mother vessels.

Vital parts of the boat-construction are strengthened based on experience from rough handling of workboats on purse net seiners, Supply vessels in the North Sea, and supply of more than 100 workboats for seismic operations over the last 15-20 years.

The workboat is certified as a decked boat, and the shape of the hull forms a boat with square stern and deep keel, trim and bowline inclining forward. The deck is self-drained and large flush work deck behind the winch, for working or passengers (Crew transfer). It is fully equipped for all kinds of cable work like cleaning cables, changing streamer sections, repairing birds, and towing tail buoys. Due to the variable pitch propeller and the hull design the boat can tow 2,8 tonnes and obtain a speed of more than 20 knots. Jemar Norpower Seismic Workboat has excellent towing characteristics and high stability and considerable surplus buoyancy make the boat practically unsinkable. The strong construction and solid fender make the workboat endure rough treatment.

The boats are certified by "Bureau Veritas" as Workboat complying with the rules for “Nordic Boat Standard”.

Features of the boat today are:

  • 8T «Off-load-release» one-point lifting hook.
  • Solid fender on the railing.
  • Precise steering due to the shape of the keel and an enlarged rudder blade.
  • Easy to manoeuvre at working speed (4-5 knots).
  • Reliable propulsion system that is easy to maintain.
  • A comfortable and quite soft pitch of the boat even when run at high speed against the sea.
  • Excellent seaworthiness and solid hull construction ensure the safety of the crew.
  • Shelter for the crew in “open back wheelhouse”.
  • Custom made cable handling equipment for safe and effective cable operations.
    Wheelhouse with maneuver console in front.
  • Coxswain-seat for the pilot and seating for four crew members.
  • Approved bilge and fire extinguishing systems.
  • Navigation and communication.

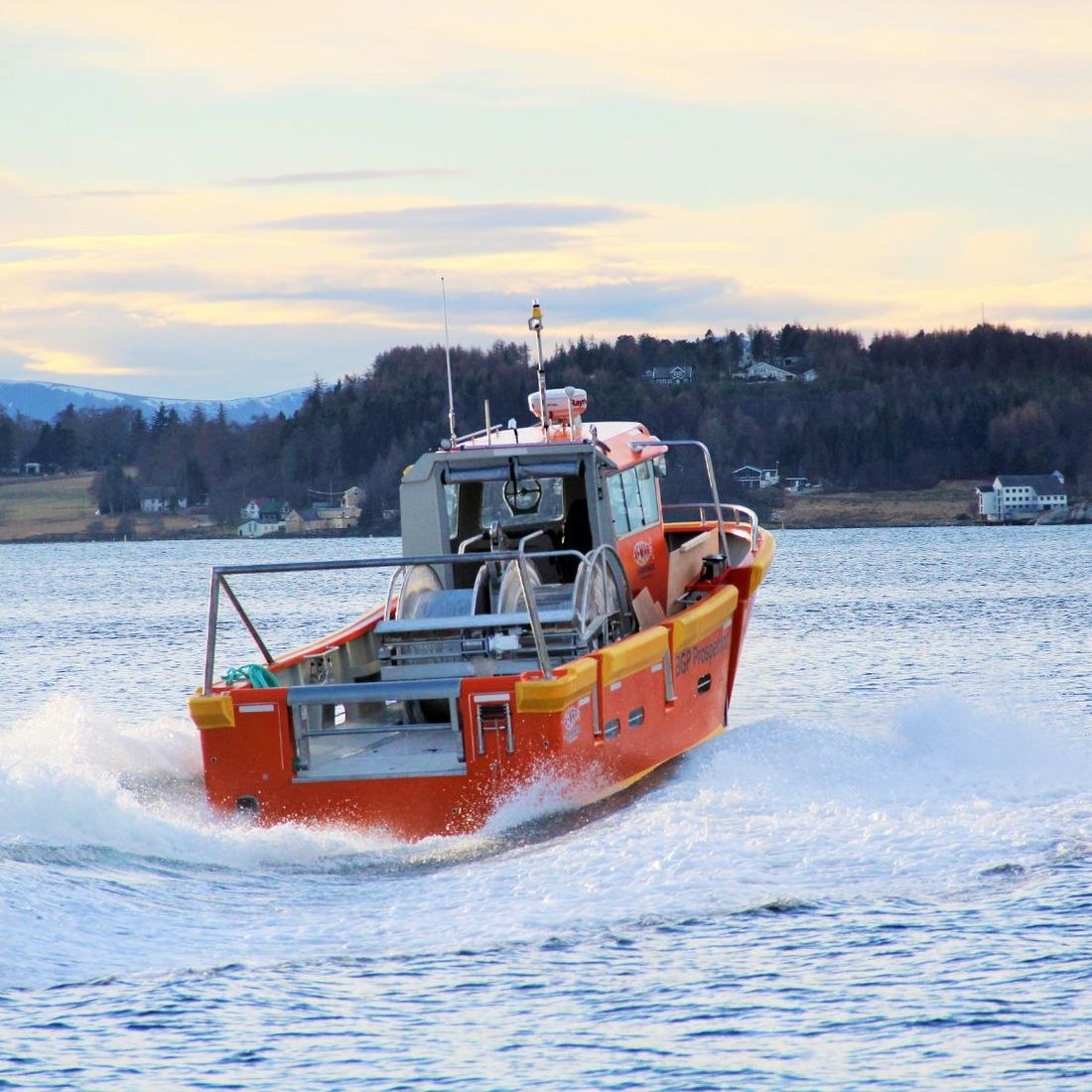

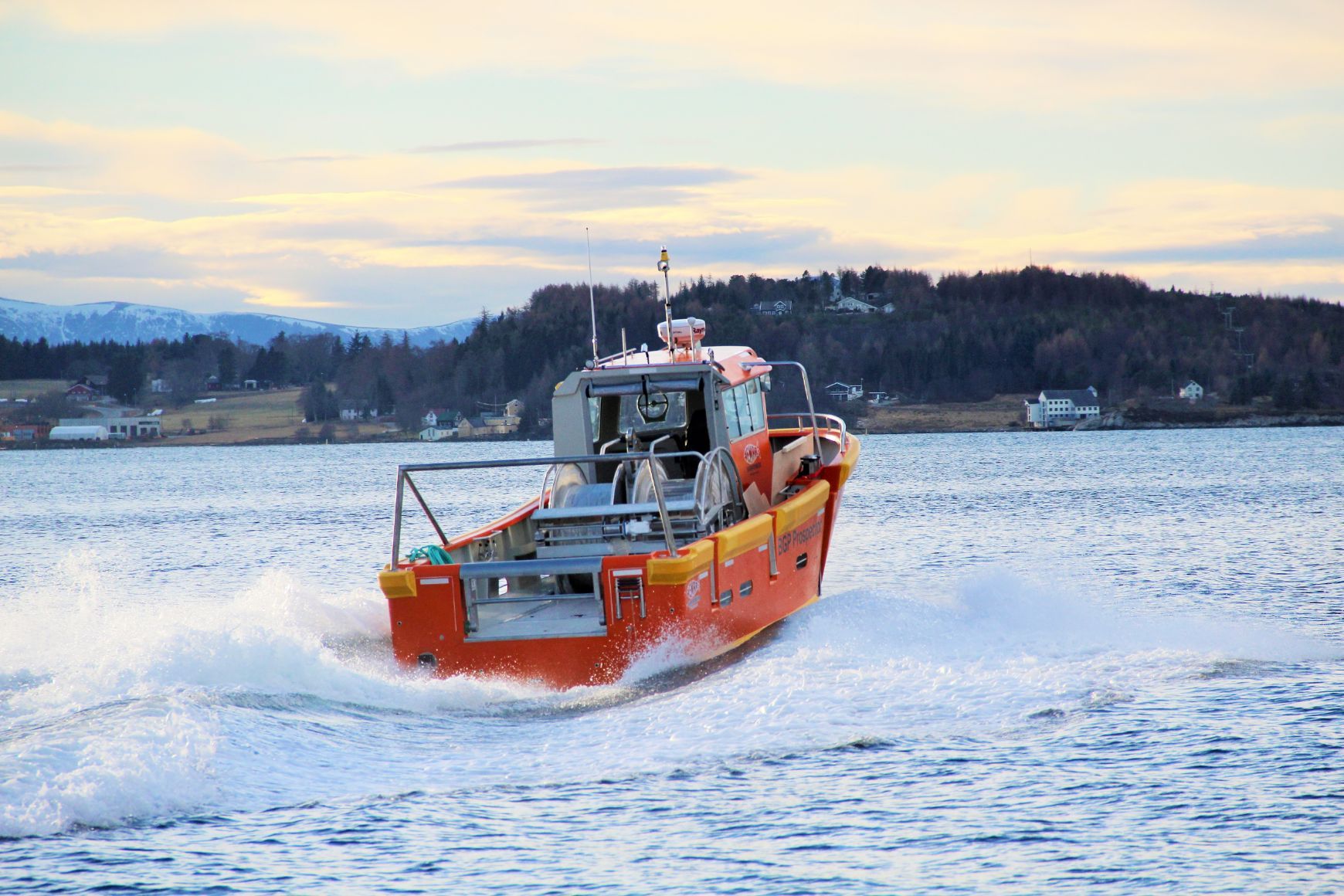

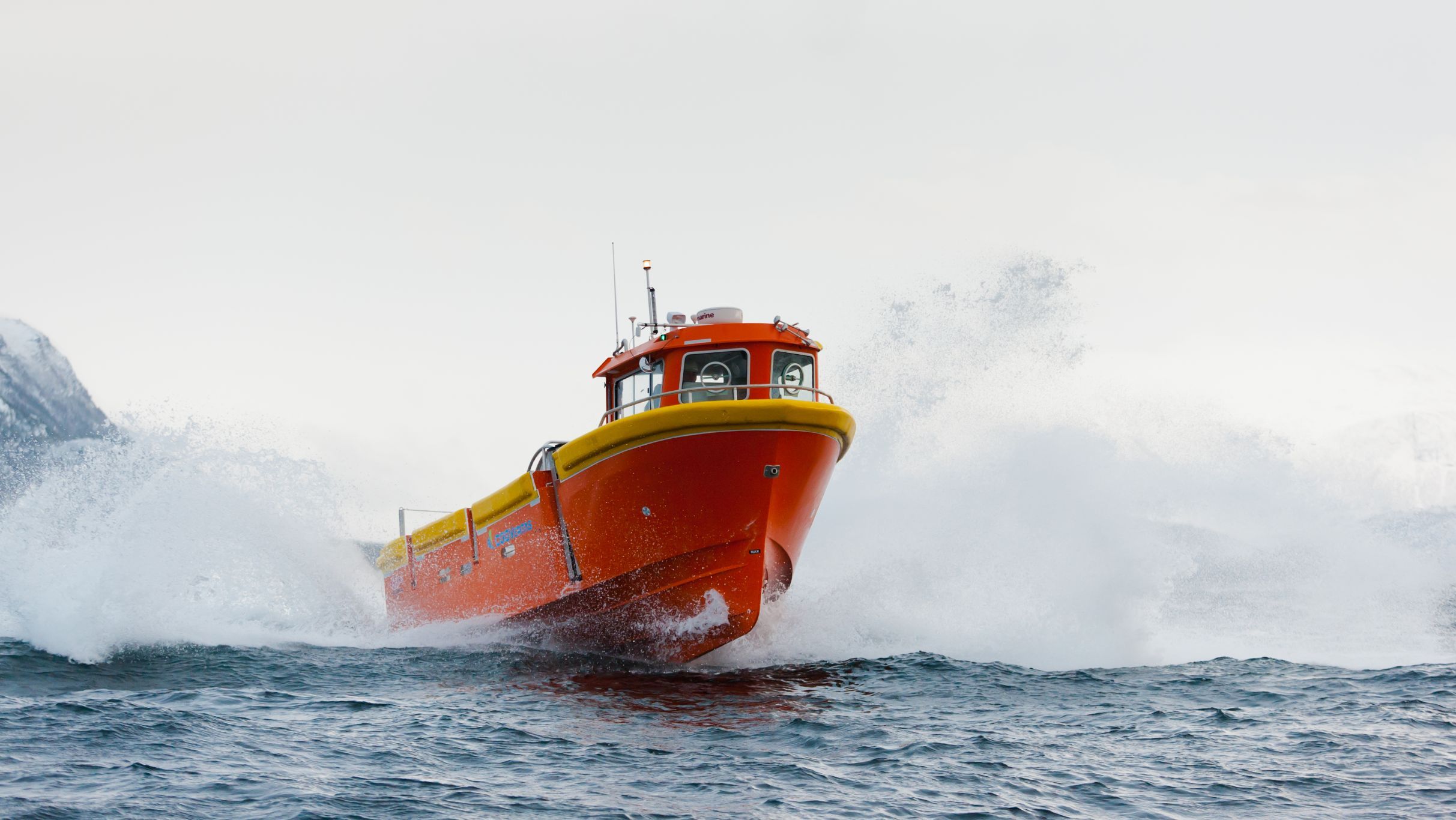

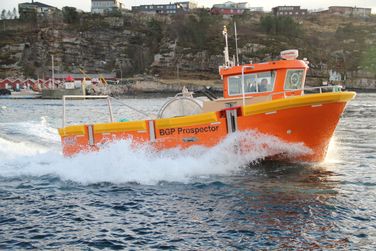

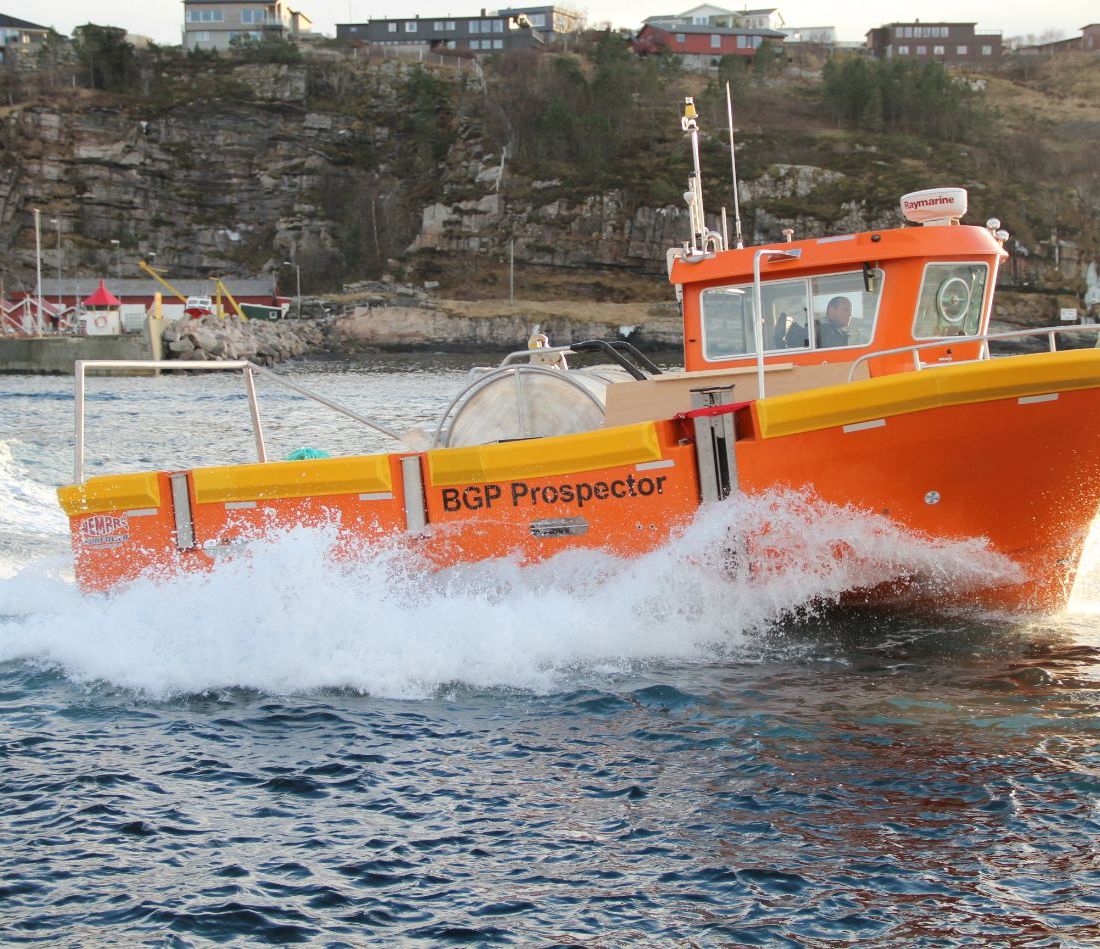

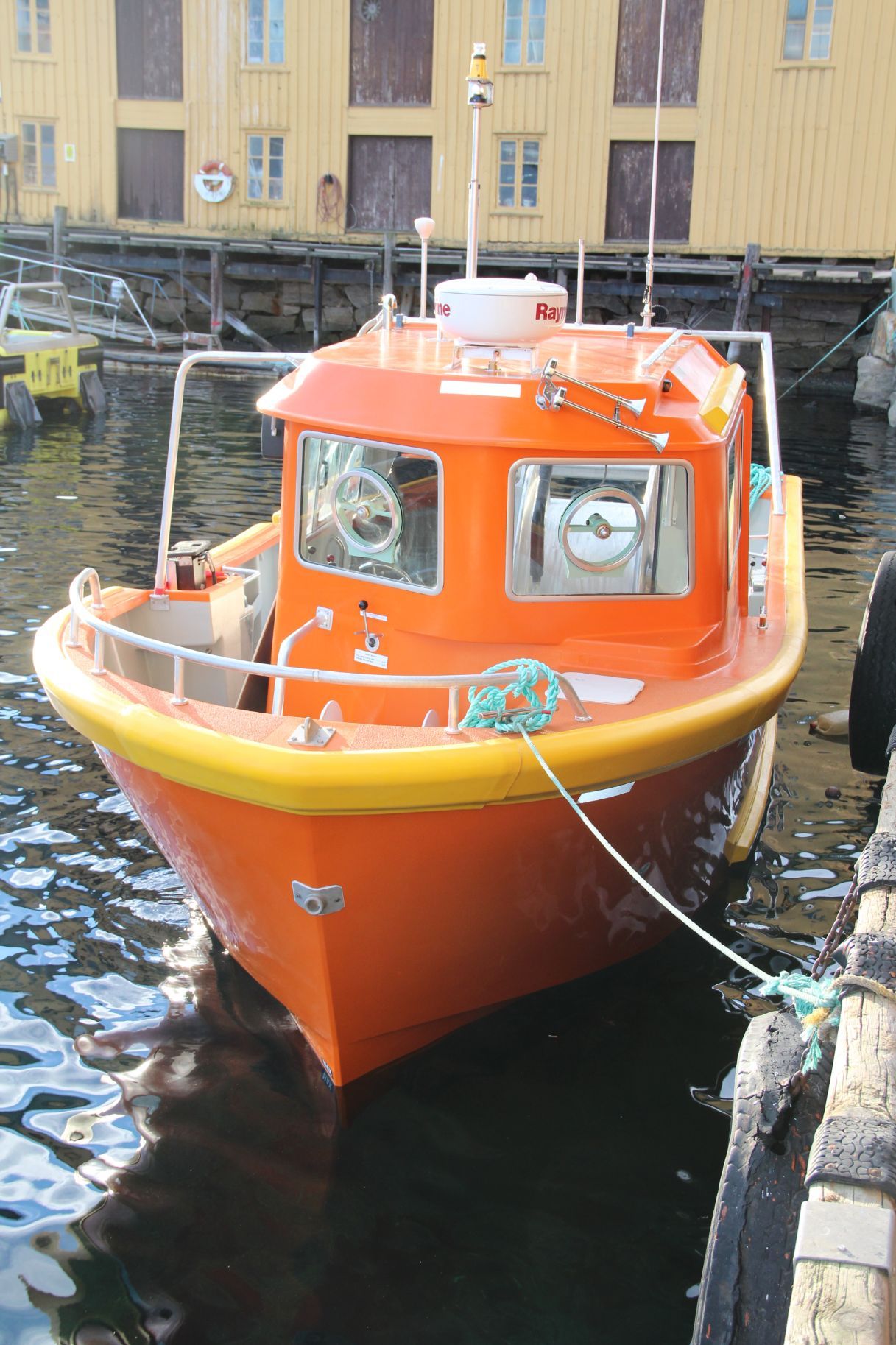

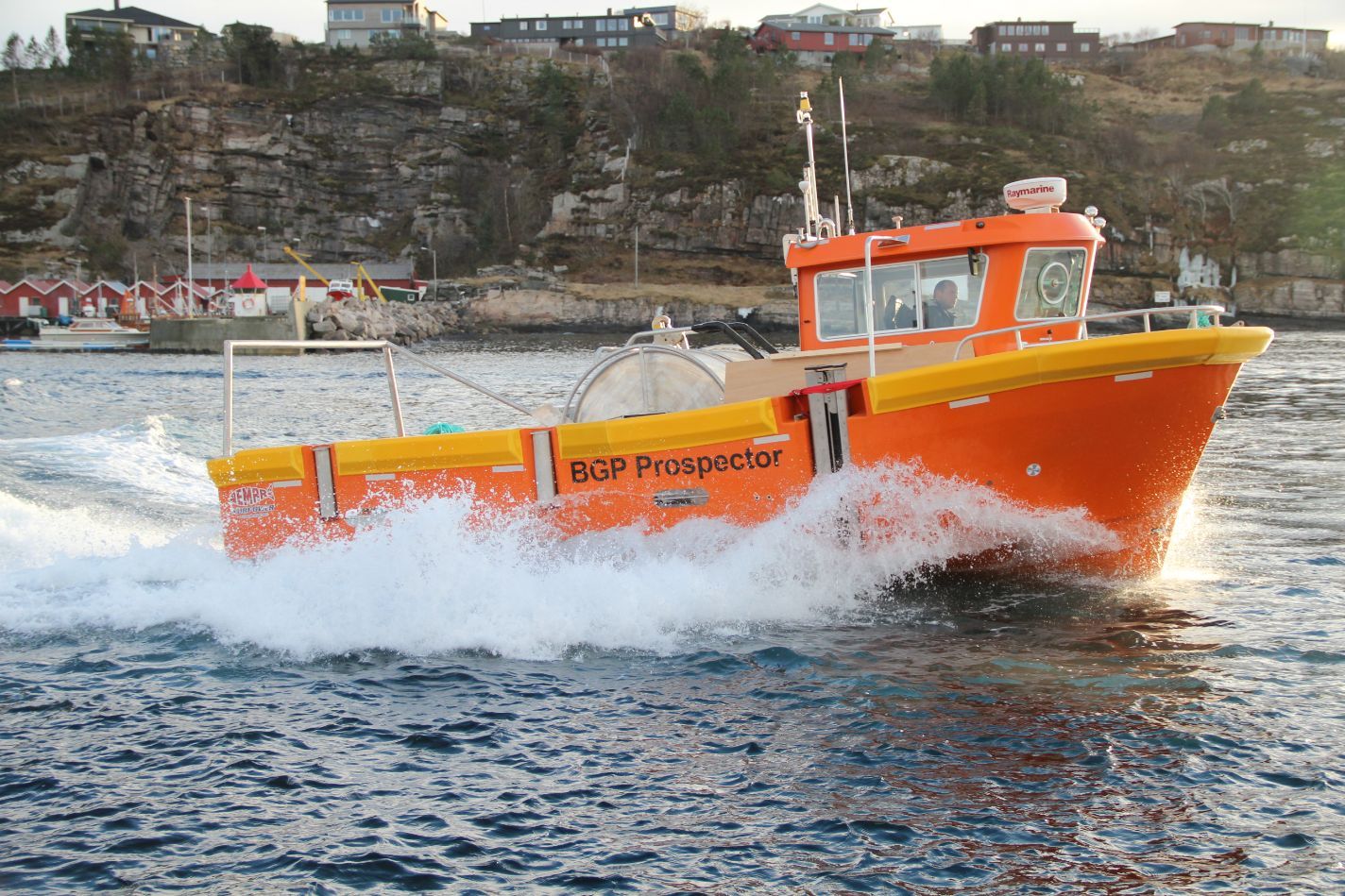

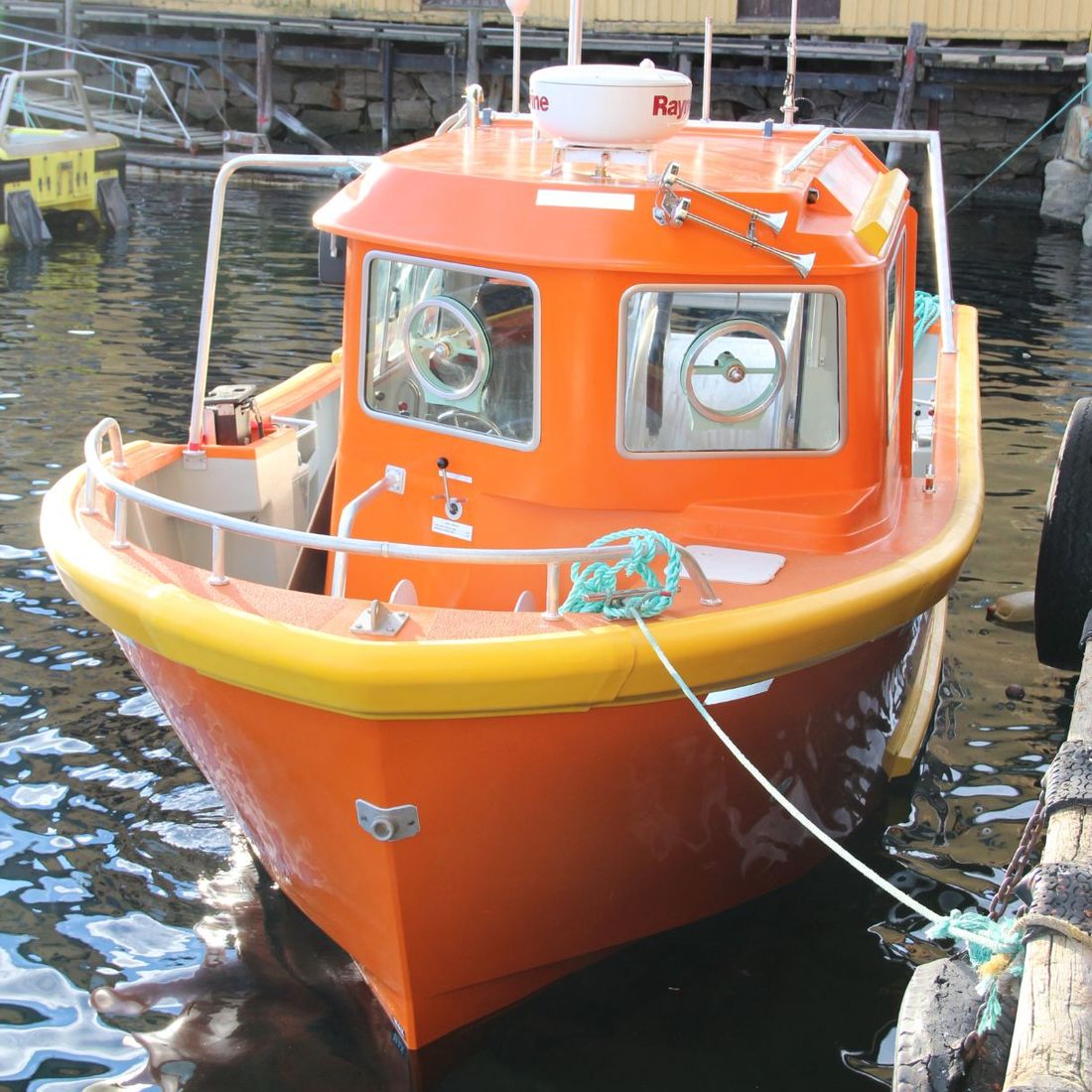

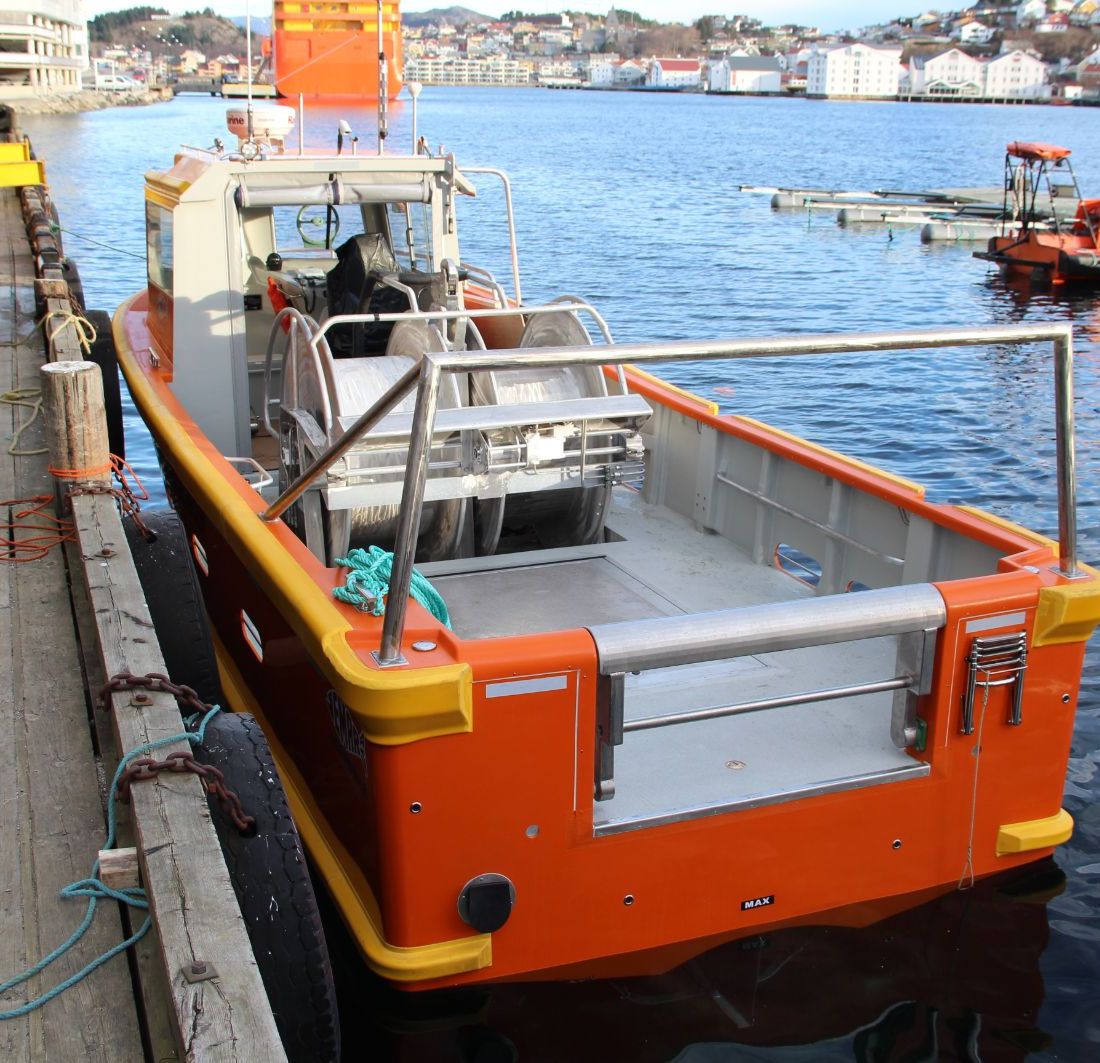

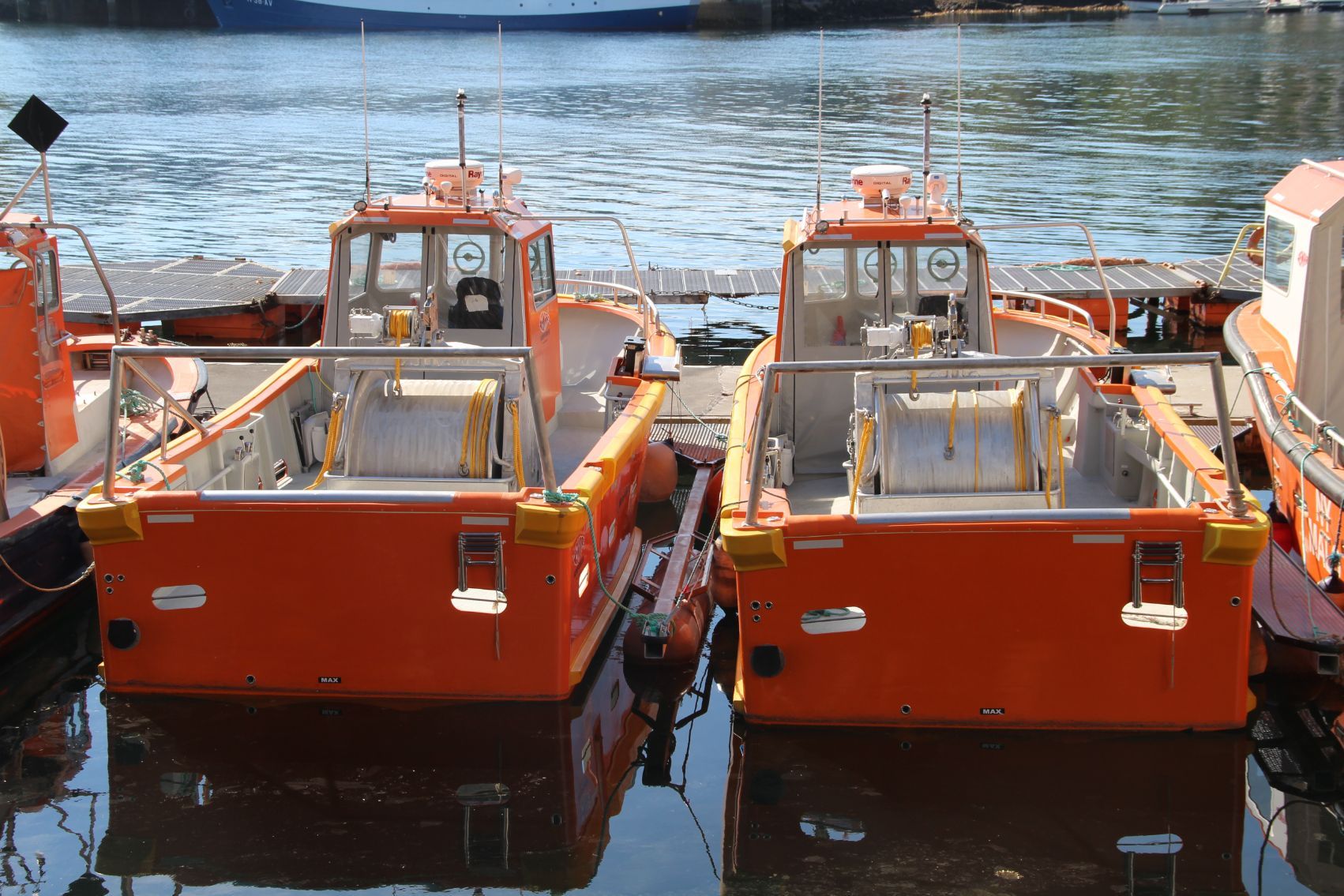

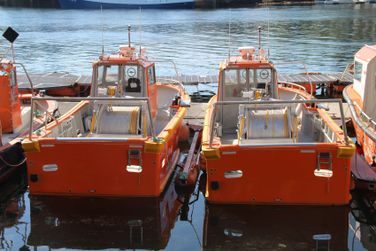

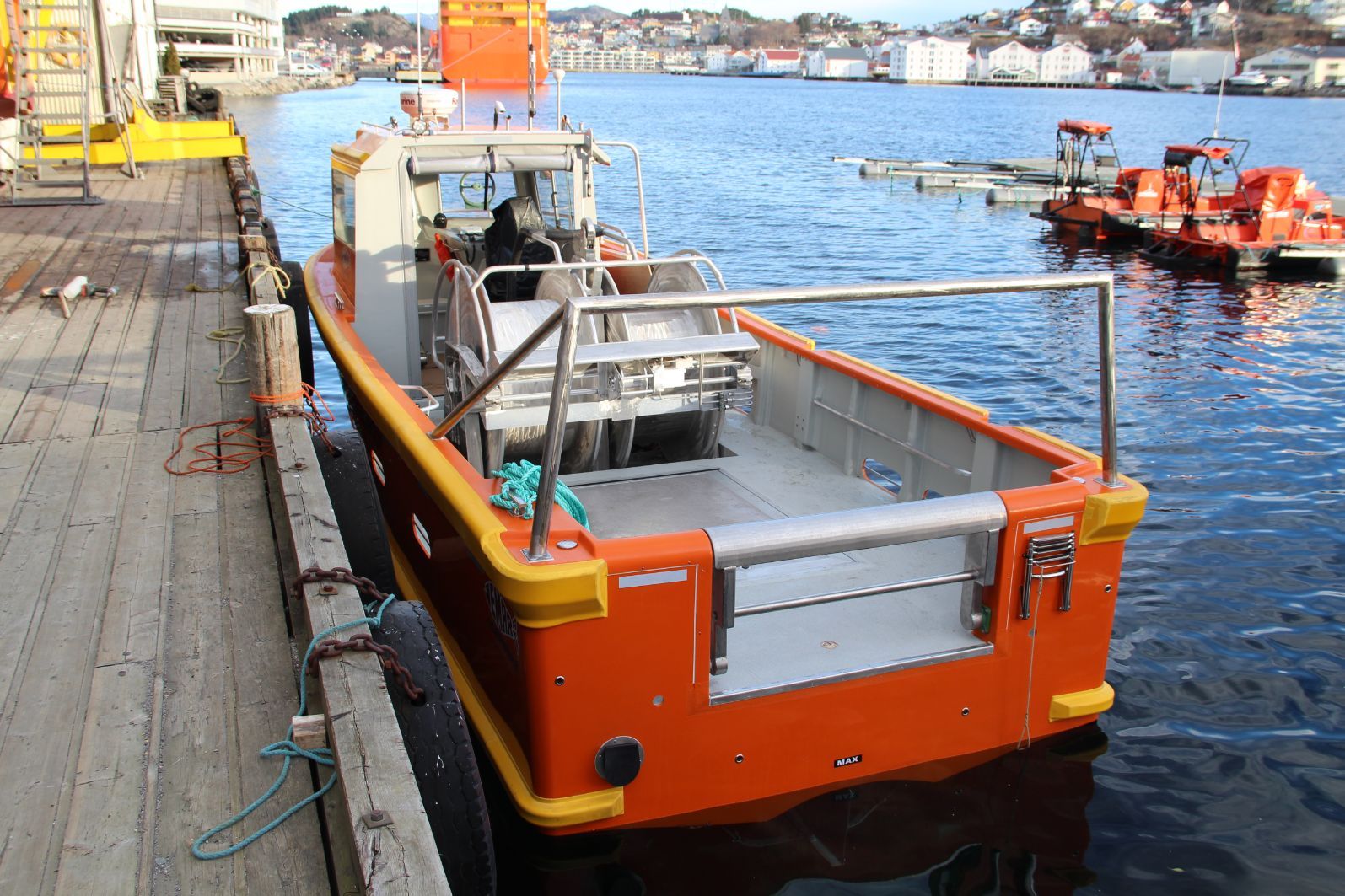

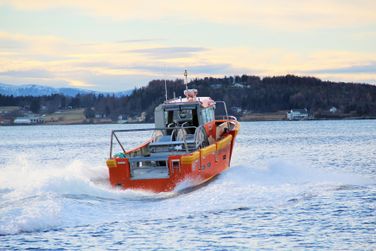

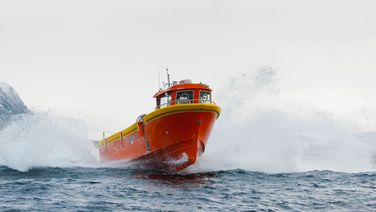

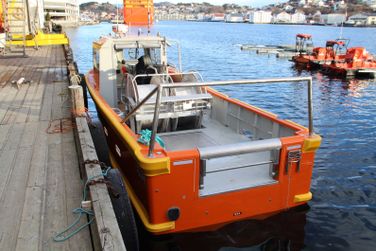

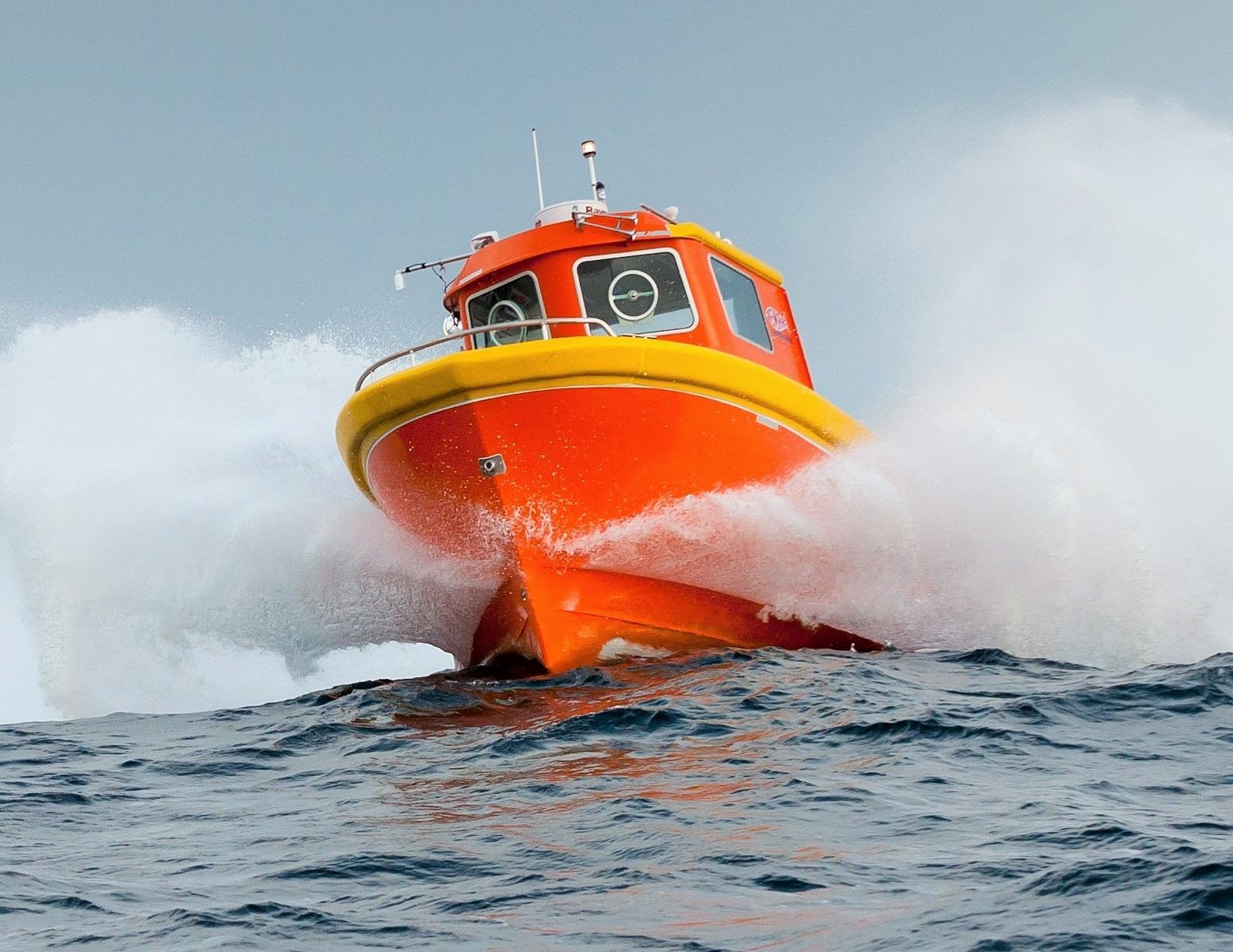

Jemar Norpower 30ft Seismic Workboat

The Jemar Norpower 30ft Seismic Workboat is a special designed workboat for cable handling operations at sea. It can operate as a “stand alone” workboat on survey vessels with weight or space limitations or 2nd Workboat onboard “full size” survey vessels. This spare workboat will fit onboard all types of mother vessels. It is the biggest and strongest of our seismic workboats. Vital parts of the boat-construction are strengthened based on experience from rough handling of workboats on purse net seiners, Supply vessels in the North Sea, and supply of more than 100 workboats for seismic operations over the last 15-20 years.

The workboat is certified as a decked boat, and the shape of the hull forms a boat with square stern and deep keel, trim and bowline inclining forward. The deck is self-drained and large flush work deck behind the winch, for working or passengers (Crew transfer). It is fully equipped for all kinds of cable work like cleaning cables, changing streamer sections, repairing birds, and towing tail buoys. Due to the variable pitch propeller and the hull design the boat can tow more than 3 tonnes and obtain a speed of more than 20 knots. The strong construction and solid fender make the workboat endure rough treatment. Jemar Norpower Seismic Workboat has excellent towing characteristics and high stability and considerable surplus buoyancy make the boat practically unsinkable.

Features of the boat today are:

  • 8T «Off-load-release» one-point lifting hook.
  • Solid fender on the railing
  • Precise steering due to the shape of the keel and an enlarged rudder blade.
  • Easy to manoeuvre at working speed (4-5 knots).
  • Reliable propulsion system that is easy to maintain.
  • A comfortable and quite soft pitch of the boat even when run at high speed against the sea.
  • Excellent seaworthiness and solid hull construction ensure the safety of the crew.
  • Shelter for the crew in “open back wheelhouse”.
  • Custom made cable handling equipment for safe and effective cable operations.
    Wheelhouse with maneuver console in front.
  • Coxswain-seat for the pilot and seating for four crew members.
  • Approved bilge and fire extinguishing systems.
  • Navigation and communication.

Fundamentals

   Length over all   9,1 m
   Beam Incl. Fender   3,3
   Lightship weight   6,2 tonnes
   Engine range   175 to 425 Bhp
   Propulsion   (Single) Pitch Propeller
   Gear   Nogva HC-168 gear, reduction 2,95:1
   Speed range   16 to 25 knots
   Bollard pull   1850 to 3100 kg+
   Pax. Capacity   Coxswain + crew of five + 6 passengers
   Fuel capacity   2 x 325 Liter
   Class   Nordic Boat Standard for Commercial Boats Less Than 15 meters
   Cable Handling Equitment

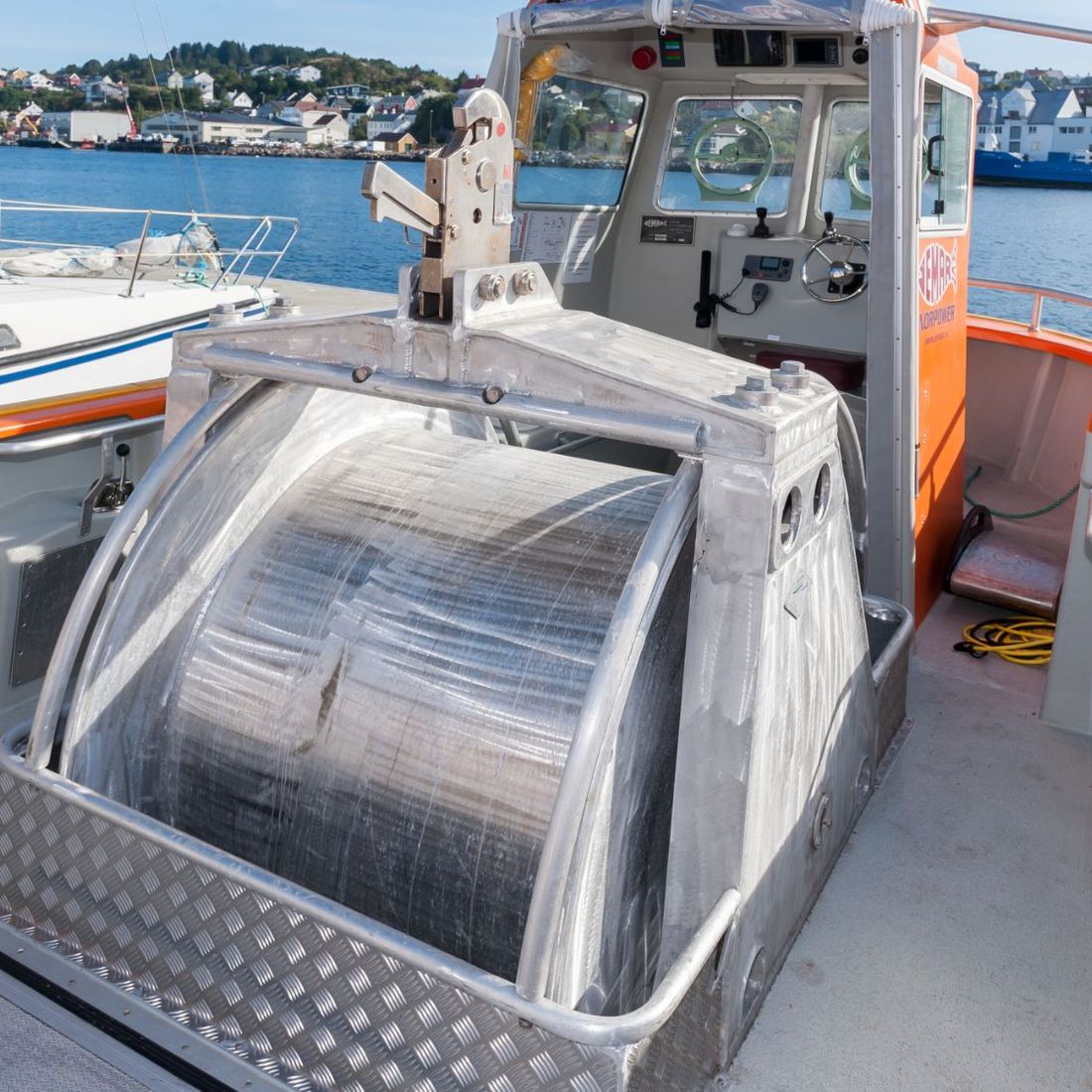

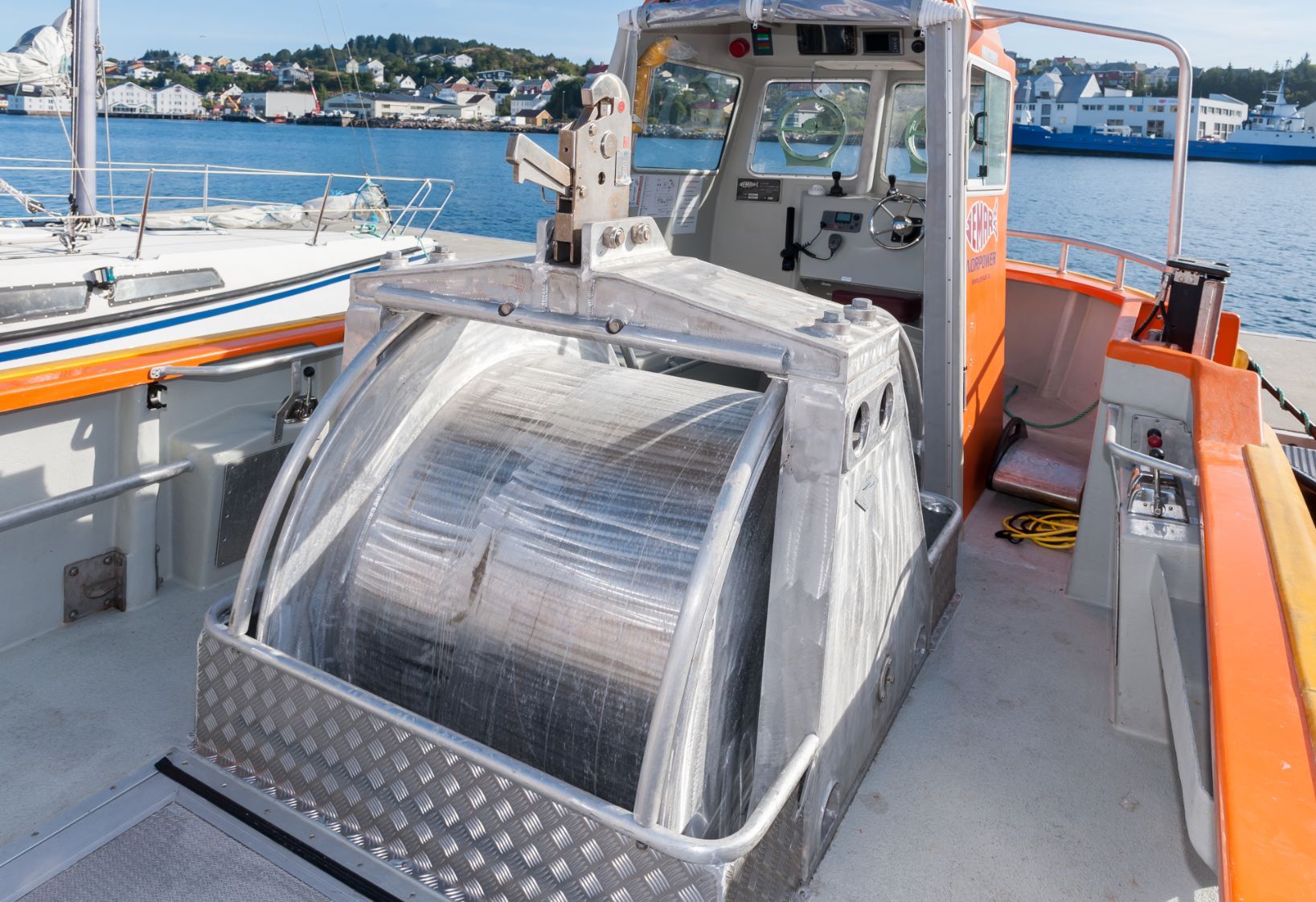

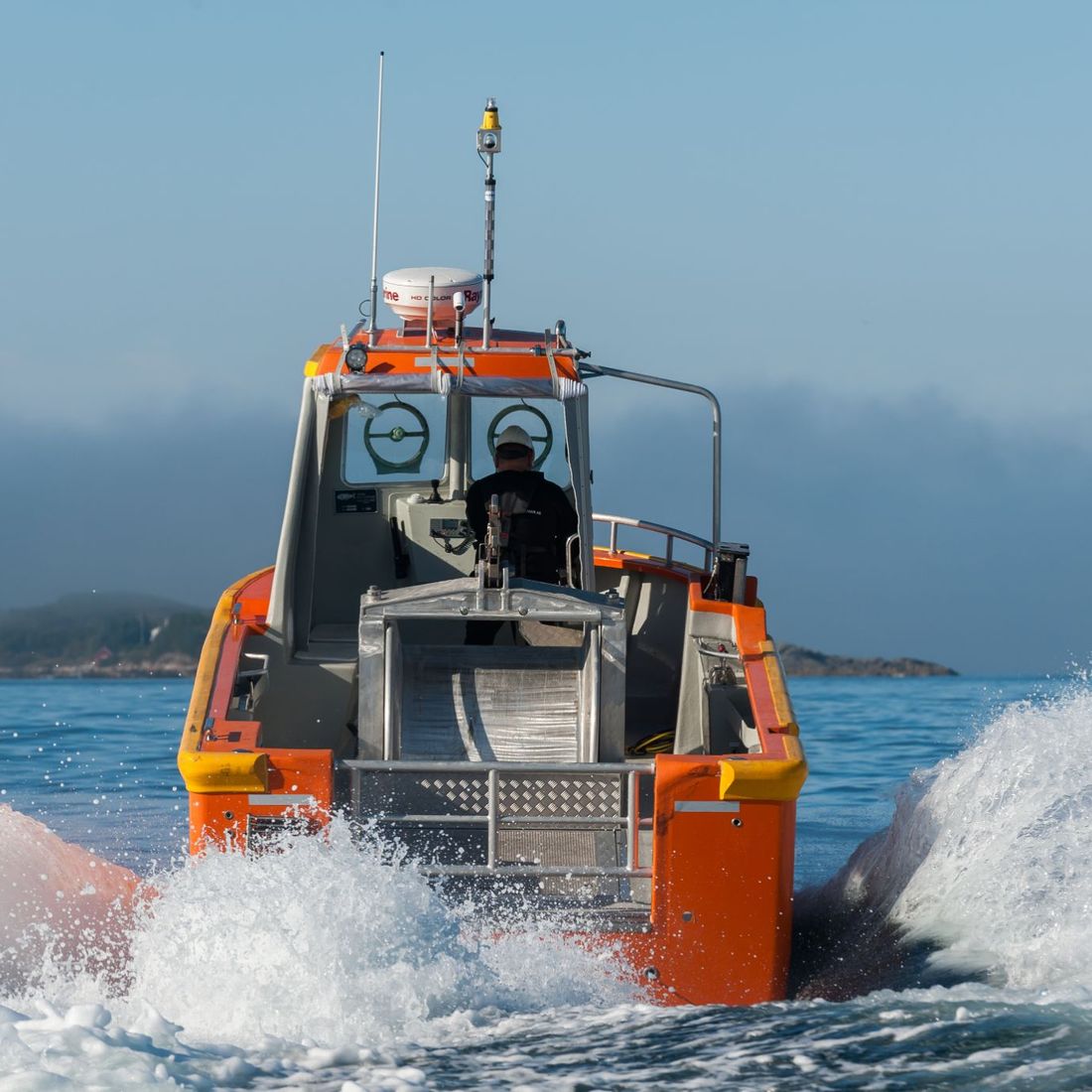

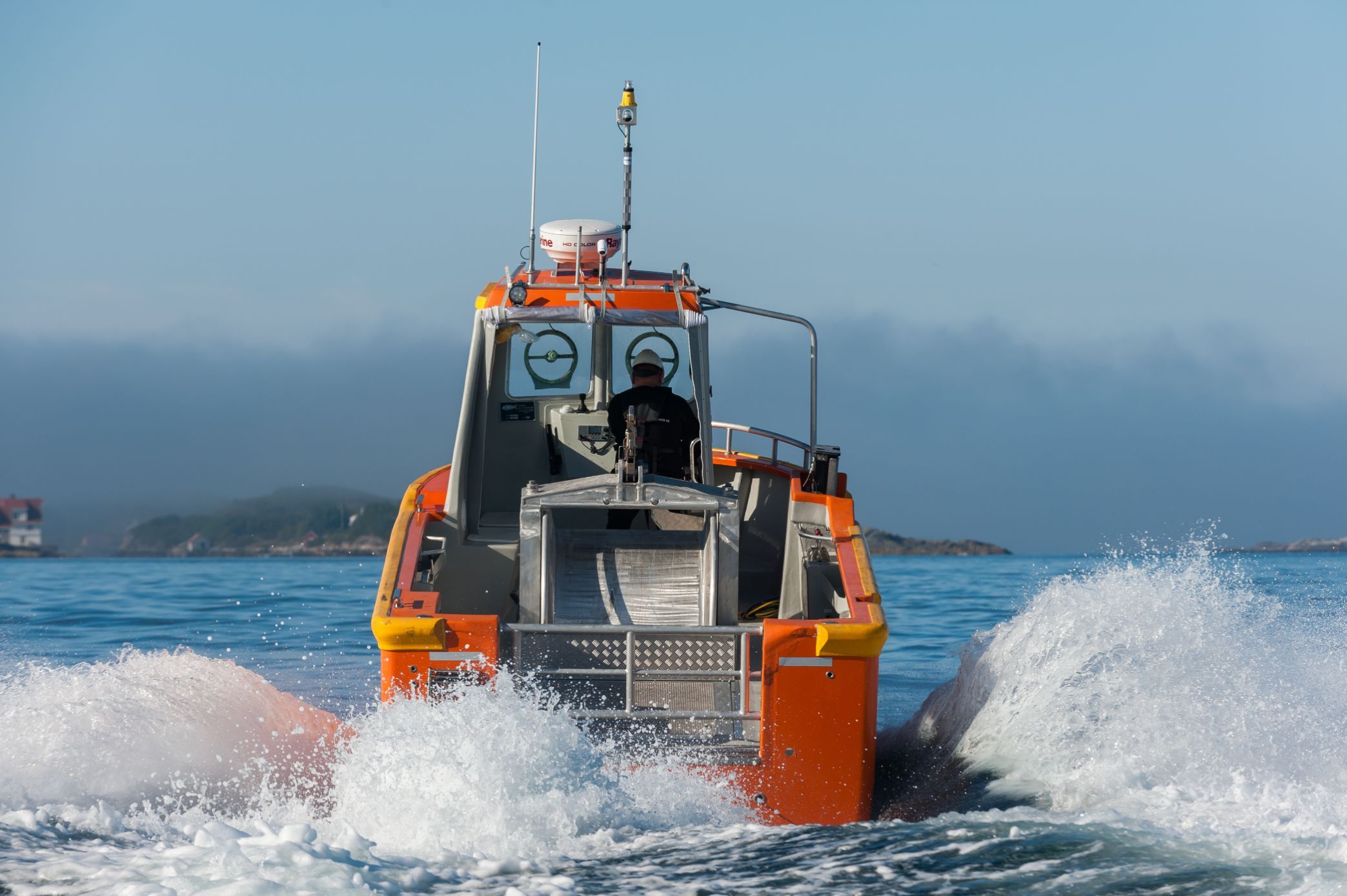

  • Double Drum Cable Winch, capacity: 2 x 150m 60mm solid streamer
  • Bow winch on forcastle, capacity: 210m 14 m/m rope
  • Cable retrival Rig at forward, one flipper at SB side
   Class society   Bureau Veritas
     Description
  • Strong and solid workboat specially built for cable handling operations at sea. The boat has a unique combination of speed and bollard pull due to its hull design and the pitch propeller.
    The boat can be described by the following characteristics: Stability, security, seaworthy.
  • Further equipment in the boat are flush spacious work deck, reliable engine, hydraulic cable lifter, double drum streamer winch.
  • Davit designed for the boat available.
