23ft Fishing boat
23ft fishing boat/ Workboat is a 6,99 meter decked boat fishing boat with approximately 2,99 meter width. Installed is a cargo room at approximately 1,18- 2,3 m3, adjusted for transporting fish and living fish. With a speed on 17,5 knots is very well suited for fishing of wrasse and lobster trap fishing

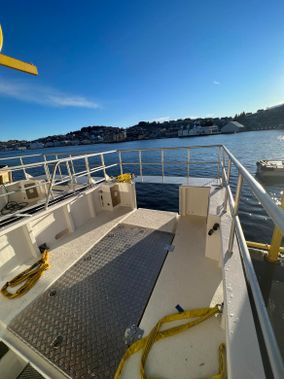

Self-draining deck, «flush» engine hatch and a breadth on 2,99m gives a large workspace on
deck. Strong fender and solid hull with possibility for extra steel enforcement. Electric

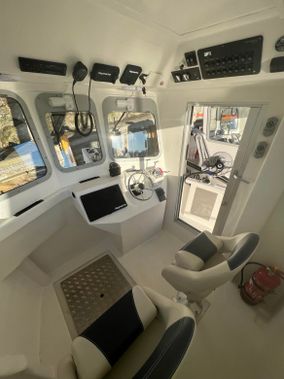

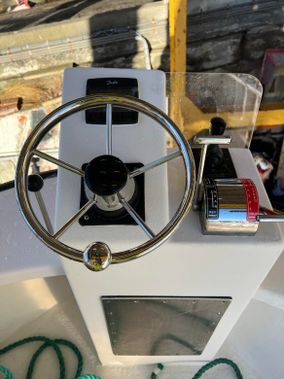

thruster. Possibility for extra steering position outside. Isolated wheelhouse with good view
Large technical room below wheelhouse, where toilet and bed can be installed.
Dimensions
Length: 6,99 m
Beam: 2,99 m
Depth: 0,85 m
Hight: 3,9 m
Speed: 17,5 knop
Engine, Gear & propeller
Engine: NOGVA NANNI MARINE DIESEL ENGINE: N4.140. 4 cylinder, 3,769 ltr, 135 HP @2600 (Can be delivered with other engines)
Gear: ZF MARINE Gear, ZF 63 IV Red:2,47:1
Thruster: Elektric Thruster 4-56 HP (Can be delivered with hydraulic thruster)
Propeller: 4 blad (Fixed propeller. Can be delivered with CPP)
Photo gallery

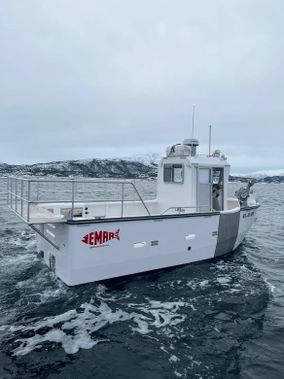

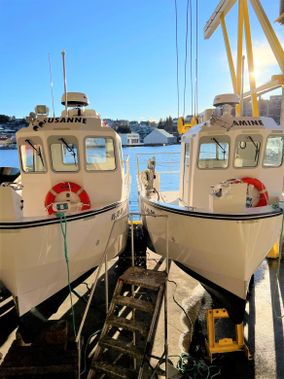

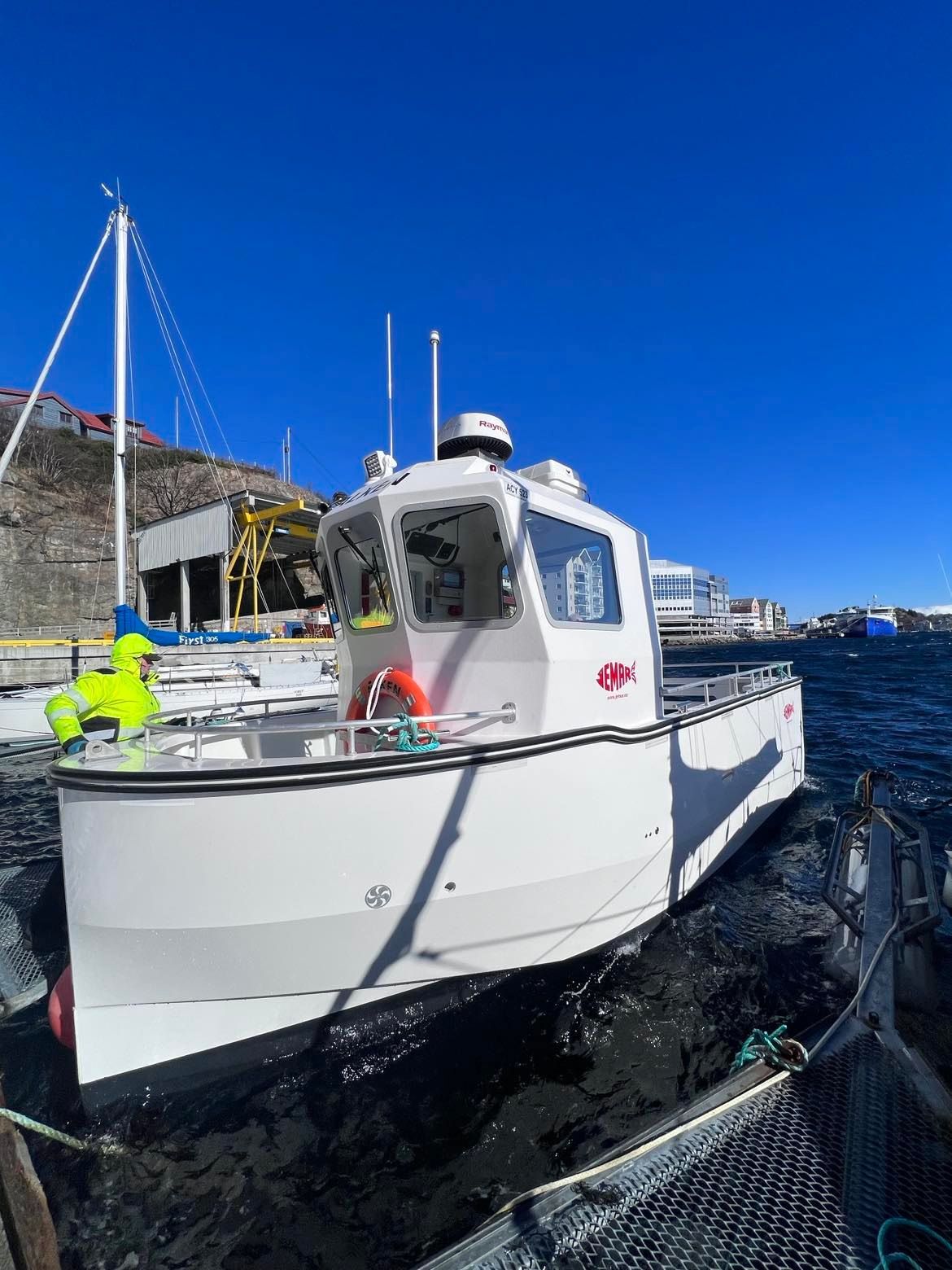

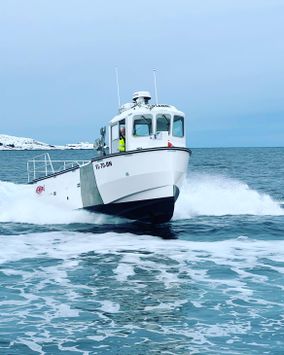

23ft Fishing boat can be equipped for several types of fishing
36ft Fishing boat

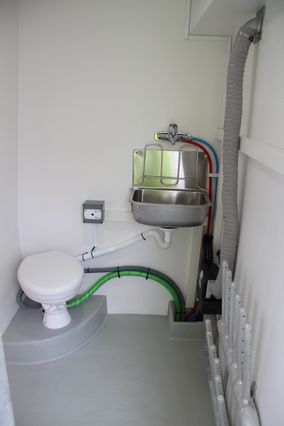

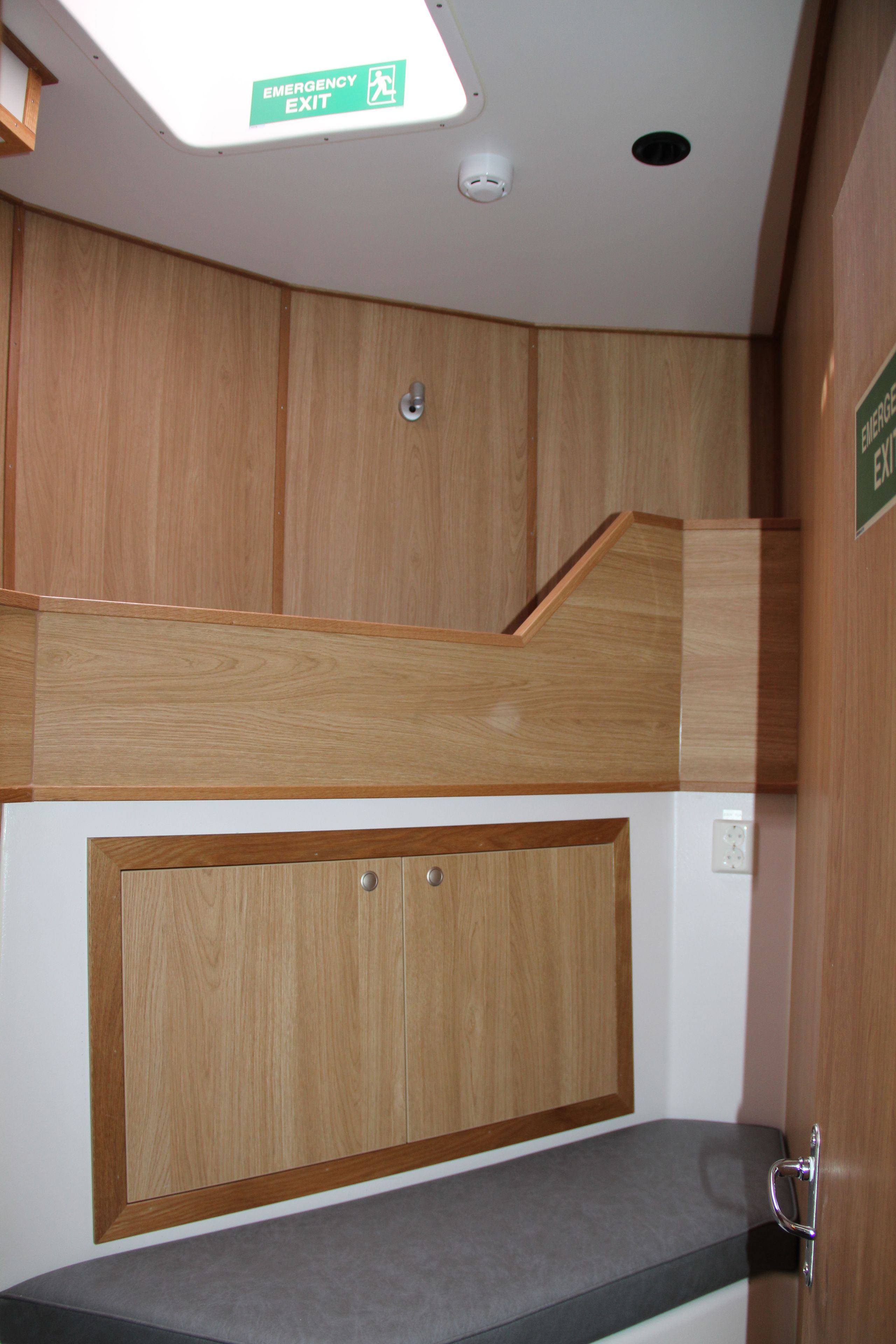

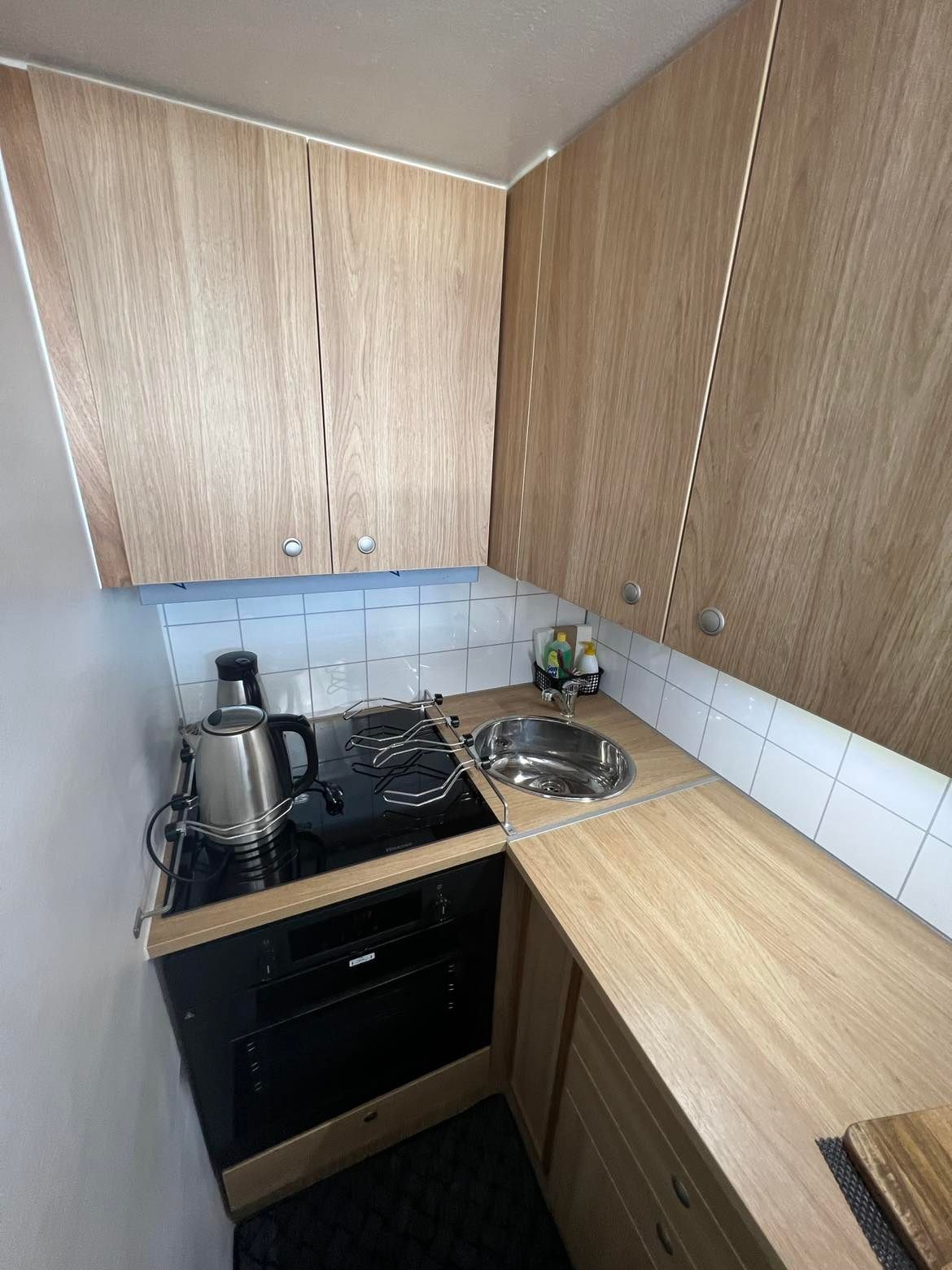

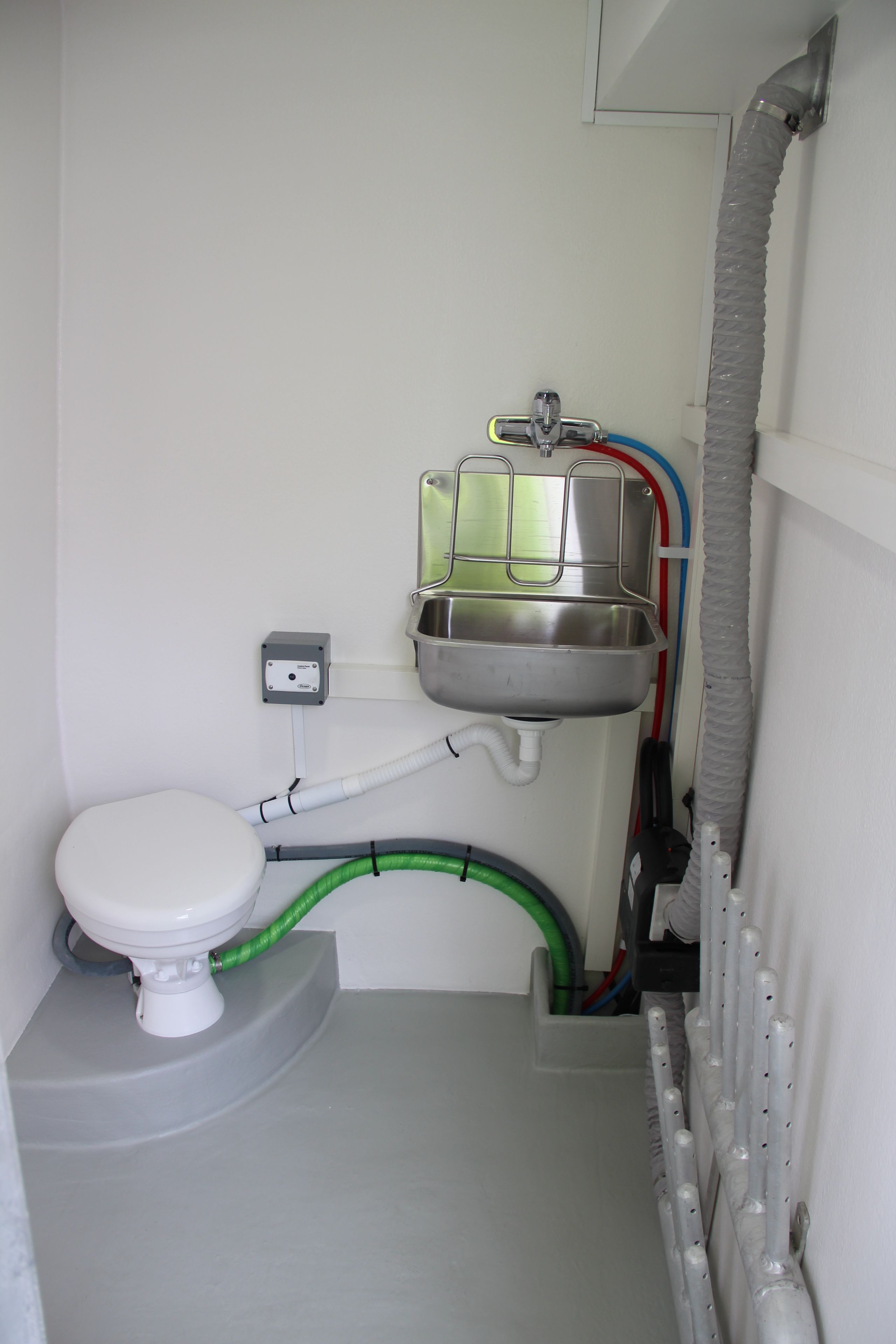

36ft fishing boat is a 10,99 decked boat with approximatly 4,45 meter beam. It is a big and solide coast fishing wessel with serveral pupose combinations. Large working area on deck and cargo room with 18 m3. Isolated wheelhouse with EXCELLENT view and elevated seating arrangement on BB side. Galley on BB side upstairs. The standard boat delivers with 3 seperate cabins downstairs. Where you will also find a large bathroom with electrical WC, shower, zinc . All modern decorated with white oak, and with smart details and solutions.
Dimensions
Length: 10,99 m ( Can be redused to 10,67m-35ft)
Beam: 4,45 m
Depth: 3,35 m
Cargo Room: 18m3
Speed: 8-10 knots
Engine, Gear & propeller
Engine: Nogva Scania DI09 70M. 5-sylinder 9,3 ltr, 300 HP , @1800 and Dynamo 2*100A
Gear: ZNOGVA HC168 red 2,95:1 with / 1 PTO
Thruster: Hydraulic Thruster SP300, 27,6HP
Propeller: 4 blad Controlable Pitch Propeller (CPP)
Photo gallery

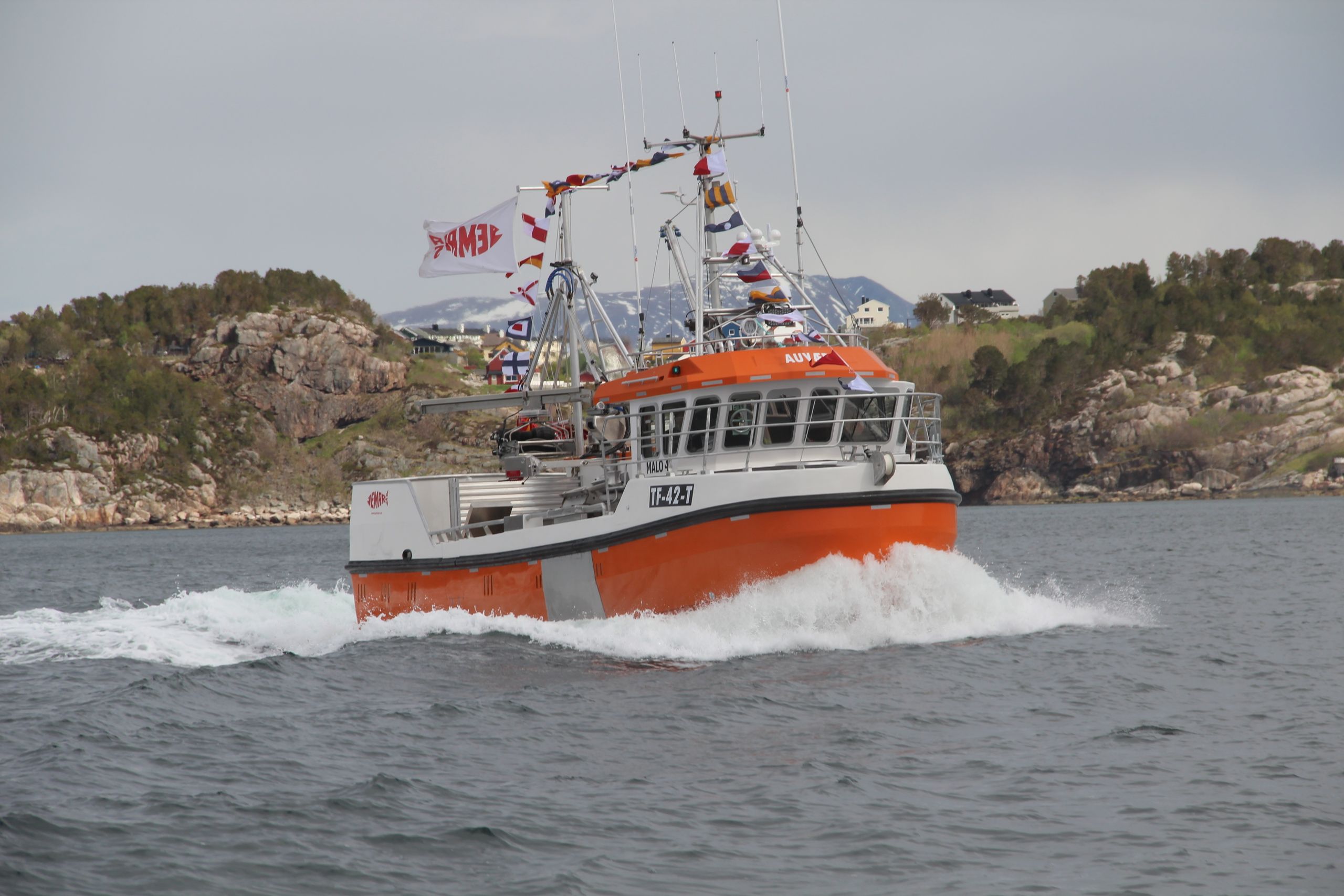

36ft Fishing Boat.

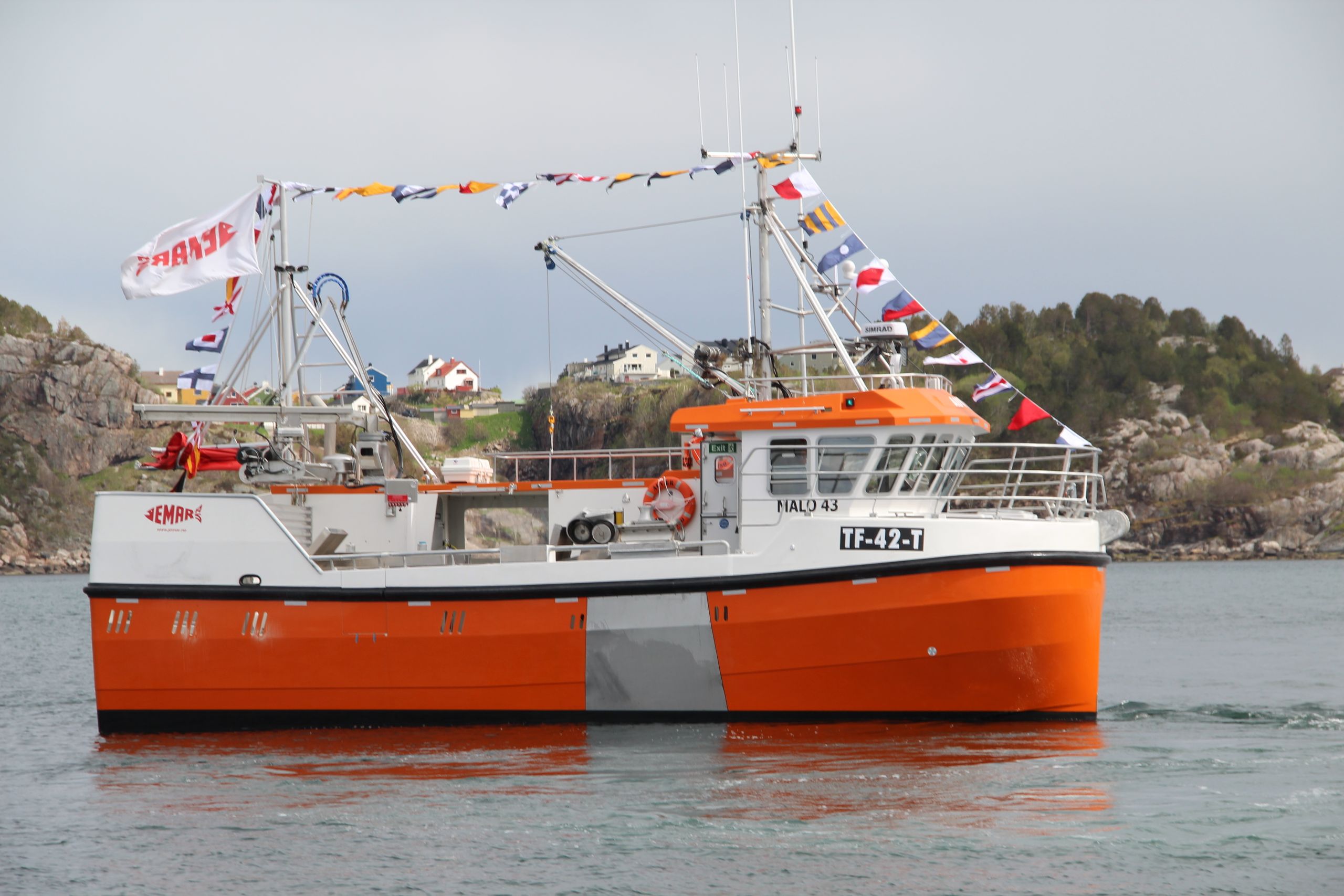

43ft Fishing boat
43ft fishing boat is a 11,99 decked boat with approximatly 4,45 meter beam. It is a big and solide coast fishing wessel with serveral pupose combinations. Large working area on deck and cargo room with app.30-34 m3. Isolated wheelhouse with EXCELLENT view and elevated seating arrangement on BB side. Galley on BB side upstairs. The standard boat delivers with 3 seperate cabins downstairs. Where you will also find a large bathroom with electrical WC, shower, zinc . All modern decorated with white oak, and with smart details and solutions.
Dimensions
Length: 11,99 m
Beam: 4,45 m
Depth: 3,35 m
Cargo Room: 30-34 m3
Speed: 8-10 knots
Engine, Gear & propeller
Engine: Nogva Scania DI09 70M. 5-sylinder 9,3 ltr, 300 HP , @1800 and Dynamo 2*100A
Gear: ZNOGVA HC168 red 2,95:1 with / 1 PTO
Thruster: Hydraulic Thruster SP300, 27,6HP
Propeller: 4 blad Controlable Pitch Propeller (CPP)
Photo gallery

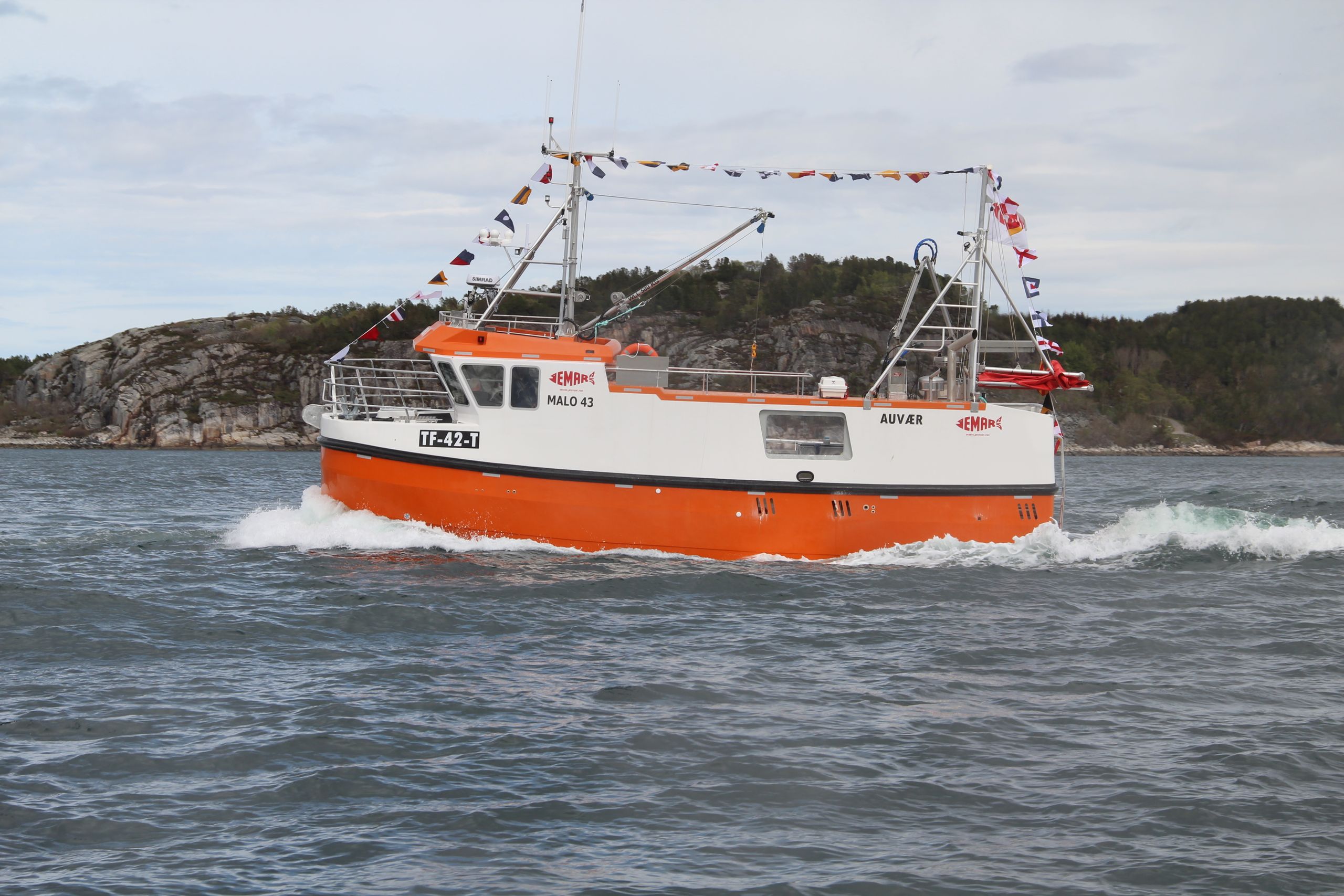

43ft Fishing Boat
